Schneider Electric GV3APN04 Tesys Kit Handle Red Ip65 W/O Trip

Schneider Electric GV3APN04 Tesys Kit Handle Red Ip65 W/O Trip

Schneider Electric
SKU:
GV3APN04
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$149.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

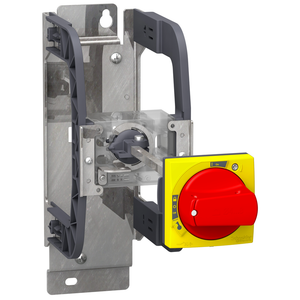

TeSys GV extended rotary handle, for motor circuit breakers GV3L, GV3P mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 2 positions OFF, ON. To be mounted on the door of the enclosure, the handle mechanism ensures an IP65 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 189-300mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately). Green Premium compliant (RoHS/REACh).
Additional Information
Locking Options Description:
1 to 3 padlocks
Range:
TeSys || TeSys Deca
Accessory / Separate Part Category:
control accessory
Back/Door Distance:
189-300 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Net Weight:
0.3 kg
Mercury Free:
Yes
Handle Colour:
red
Warranty:
18 months
Rotary Handle Padlocking:
padlock in OFF position
Device Short Name:
GV3AP
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Compatibility:
GV3P || GV3L
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
IP65
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Or Component Type:
rotary handle kit
Rotary Handle Mounting Style:
extended
Circularity Profile:
ENVEOLI060901
Eu Rohs Directive:
Compliant with Exemptions
Environmental Disclosure:
ENVPEP060901
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Handle Front Plate Colour:
yellow
Catalog:
View
Datasheet:
View
