Schneider Electric GV3G364 3 Breakers Power Busbar
Schneider Electric
$45.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

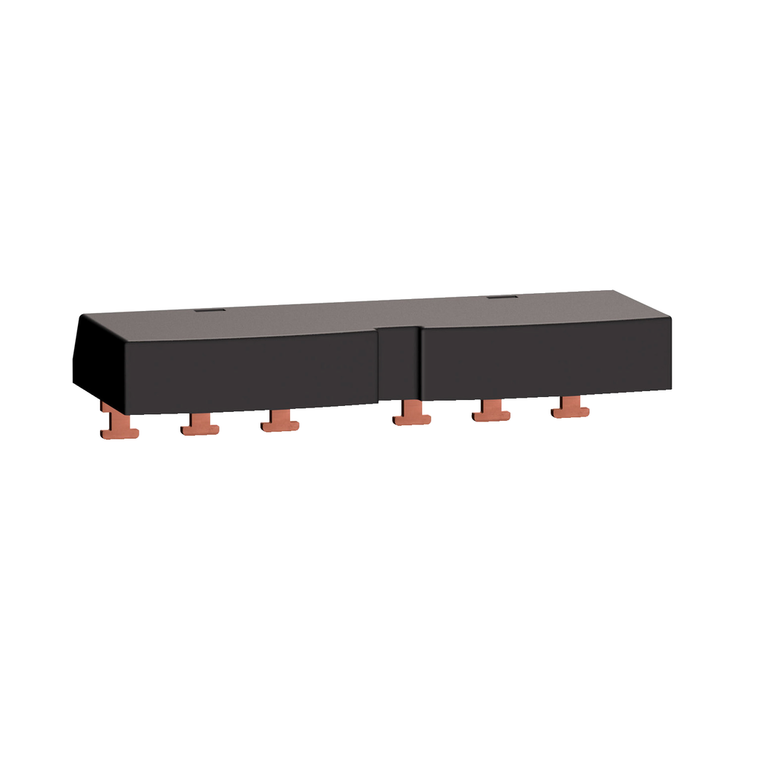

Schneider Electric GV3G364 3 Breakers Power Busbar
TeSys GV busbar set, 3 phases, 115A/690V, for the upstream parallel wiring of groups of motor starters composed of GV3 motor circuit breakers. For use with Everlink BTR screw terminals devices, it is composed of 3 tap-off outlets for the paralleling of 3 devices with a pitch of 64mm. Green Premium compliant (RoHS/REACh).
- Product Compatibility:
- LC1D40A...D65A || GV3L || GV3P
- Rohs Exemption Information:
- Yes
- [Ui] Rated Insulation Voltage:
- 690 V
- Toxic Heavy Metal Free:
- Yes
- Range:
- Linergy
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Name:
- FT
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Accessory / Separate Part Category:
- connection accessory
- Reach Free Of Svhc:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ith] Conventional Free Air Thermal Current:
- 115 A
- Eu Rohs Directive:
- Compliant
- Device Short Name:
- GV3G
- Warranty:
- 18 months
- Mounting Location:
- on terminal
- Product Or Component Type:
- comb busbar
- Poles Description:
- 3P
- Number Of Tap-Offs:
- 3
- Mercury Free:
- Yes
- Range Compatibility:
- TeSys Deca || TeSys K || TeSys U || TeSys GV3
- Connection Pitch:
- 64 mm
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Net Weight:
- 0.25 kg
