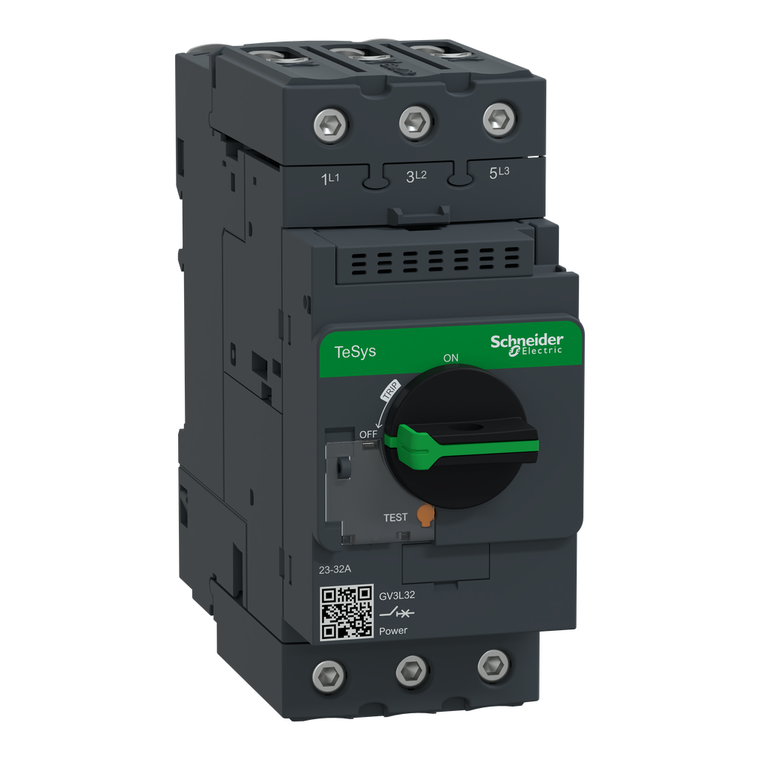

Schneider Electric GV3L32 Tesys Motor Cb Magnetic 32A Evlk
TeSys GV motor circuit breaker, 3 poles (3P), 32A/690V, for 3-phase motor applications 15kW@400V. It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 100kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary handle guaranteed for 50 000 cycles AC-3. To complete motor protection, use it in association with a thermal overload relay LRD332 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
- Climatic Withstand:
- IACS E10
- Mercury Free:
- Yes
- Circularity Profile:
- ENVEOLI060901
- Eu Rohs Directive:
- Compliant with Exemptions
- Magnetic Tripping Current:
- 448-448 A
- Product Or Component Type:
- motor circuit breaker
- Utilisation Category:
- category A IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Trip Unit Technology:
- magnetic
- Mechanical Robustness:
- shocks 15 Gn for 11 ms contactor open || shocks 30 Gn for 11 ms contactor closed || vibrations 4 Gn, 5...300 Hz
- Standards:
- EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
- Width:
- 55 mm
- Warranty:
- 18 months
- Mechanical Durability:
- 50000 cycles
- Electrical Durability:
- 50000 cycles AC-3 415 V In
- Tightening Torque:
- 5 N.m screw clamp terminal
- Product Name:
- TeSys GV3 || TeSys Deca
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.96 kg
- Line Rated Current:
- 32 A
- Network Frequency:
- 50/60 Hz
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Operating Altitude:
- 9842.52 ft (3000 m)
- Depth:
- 136 mm
- Suitability For Isolation:
- yes IEC 60947-1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-2
- Ambient Air Temperature For Operation:
- -20-60 °C
- Power Dissipation Per Pole:
- 8 W
- [Ics] Rated Service Short-Circuit Breaking Capacity:
- 100 % 230/240 V AC 50/60 Hz || 100 % 400/415 V AC 50/60 Hz || 100 % 440 V AC 50/60 Hz || 50 % 500 V AC 50/60 Hz || 50 % 690 V AC 50/60 Hz
- Fixing Mode:
- 35 mm symmetrical DIN rail clipped || panel screwed with 3 x M4 screws)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- [Ui] Rated Insulation Voltage:
- 690 V AC 50/60 Hz IEC 60947-2
- Control Type:
- rotary handle
- Poles Description:
- 3P
- Fire Resistance:
- 960 °C IEC 60695-2-11
- Network Type:
- AC
- Product Certifications:
- CCC || UL || CSA || EAC || LROS (Lloyds register of shipping) || BV || ABS || DNV-GL || UKCA
- Environmental Disclosure:
- ENVPEP060901
- Color:
- dark grey
- Ip Degree Of Protection:
- IP20 IEC 60529
- Range:
- TeSys Deca
- Ambient Air Temperature For Storage:
- -40-80 °C
- Breaking Capacity:
- 100 kA Icu 230/240 V AC 50/60 Hz || 100 kA Icu 400/415 V AC 50/60 Hz || 50 kA Icu 440 V AC 50/60 Hz || 12 kA Icu 500 V AC 50/60 Hz || 6 kA Icu 690 V AC 50/60 Hz
- Device Application:
- motor protection
- Motor Power Kw:
- 15-15 kW 400/415 V AC 50/60 Hz || 18.5-18.5 kW 500 V AC 50/60 Hz || 22-22 kW 690 V AC 50/60 Hz
- Device Short Name:
- GV3L
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-2
- Height:
- 132 mm
