Schneider Electric GV3P32 Tesys Motor Cb Tho/Mag 23-32A Evlk

Schneider Electric GV3P32 Tesys Motor Cb Tho/Mag 23-32A Evlk

Schneider Electric
SKU:
GV3P32
|
UPC:
3389119405386
$404.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

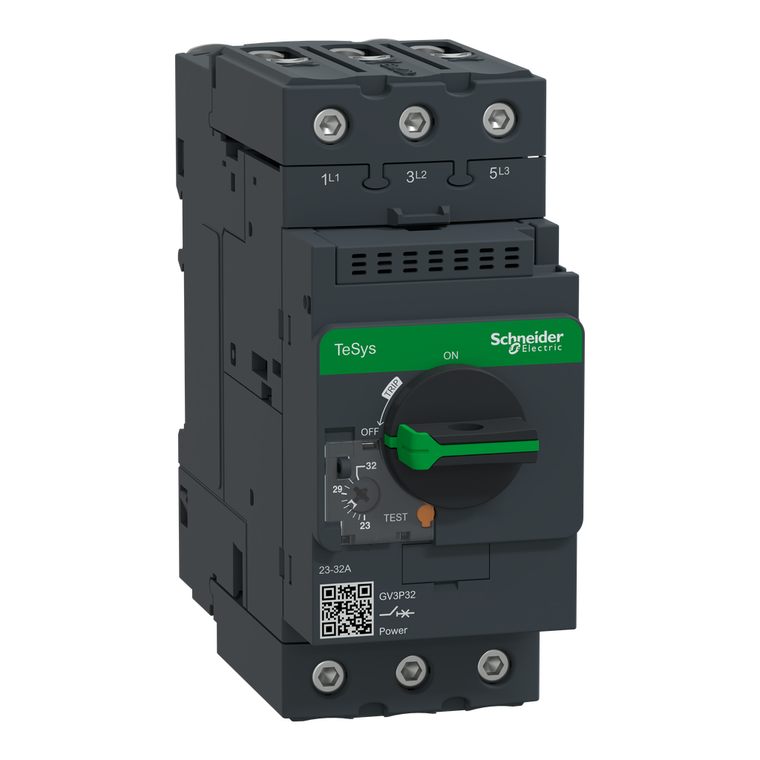

GV3P32 is a TeSys GV motor circuit breaker from Schneider Electric. It ensures thermal-magnetic protection for motors 15kW@400V and high breaking capacity Icu 100kA. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3 415V. GV3P32 is a TeSys GV motor circuit breaker from Schneider Electric designed for motor applications 15kW@400V. It fulfills a thermal-magnetic protection with a thermal setting range 23-32A, magnetic tripping at 14xIn and high breaking capacity Icu 100kA@400V. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3 415V. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Complete motor protection in a single device , short-circuit, overload, disconnection. Associated with a TeSys contactor, it ensures a complete type 1 or type 2 Motor Starter solution. Compact, 55mm wide, for DIN-rail and panel mounting. Manual control with rotary knob for Start / Stop, padlockable. Possible mounting of auxiliary contacts front or side mounted (GVAE, GVAN, GVAD) for status and tripping signaling. For large industrial or building LV distribution networks thanks to a high 100kA breaking capacity. Power connections with EverLink BTR screw connectors providing constant tightening pressure. Can be associated with undervoltage or shunt tripping units (GVAU, GVAS) and power distribution busbars (GV3G).
Additional Information
Electrical Durability:
50000 cycles AC-3 415 V In
Motor Power Kw:
15-15 kW 400/415 V AC 50/60 Hz || 18.5-18.5 kW 500 V AC 50/60 Hz || 22-22 kW 690 V AC 50/60 Hz
Environmental Disclosure:
ENVPEP060901
Sustainable Offer Status:
Green Premium product
[Ith] Conventional Free Air Thermal Current:
32 A IEC 60947-4-1
Width:
55 mm
Phase Failure Sensitivity:
yes IEC 60947-4-1
Color:
dark grey
Range:
TeSys Deca
Circularity Profile:
ENVEOLI060901
Device Short Name:
GV3P
[Ics] Rated Service Short-Circuit Breaking Capacity:
100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 50 % 500 V AC 50/60 Hz IEC 60947-2 || 50 % 690 V AC 50/60 Hz IEC 60947-2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Utilisation Category:
AC-3 IEC 60947-4-1
Standards:
EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
[Ui] Rated Insulation Voltage:
690 V AC 50/60 Hz IEC 60947-2
Device Application:
motor protection
Fire Resistance:
960 °C IEC 60695-2-11
Ambient Air Temperature For Storage:
-40-80 °C
Ip Degree Of Protection:
IP20 IEC 60529
Operating Altitude:
9842.52 ft (3000 m)
Product Certifications:
CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || ABS || DNV-GL || UKCA
Ambient Air Temperature For Operation:
-20-60 °C
Fixing Mode:
35 mm symmetrical DIN rail clipped || panel screwed with 3 x M4 screws)
Rated Duty:
continuous IEC 60947-4-1
Poles Description:
3P
Suitability For Isolation:
yes IEC 60947-1
Climatic Withstand:
IACS E10
Ik Degree Of Protection:
IK09 enclosure
Magnetic Tripping Current:
448-448 A
Network Frequency:
50/60 Hz IEC 60947-4-1
California Proposition 65:
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Product Or Component Type:
motor circuit breaker
Thermal Protection Adjustment Range:
23-32 A IEC 60947-4-1
Mercury Free:
Yes
Breaking Capacity:
100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 12 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 6 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Net Weight:
0.96 kg
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-2
Line Rated Current:
32 A
Warranty:
18 months
Control Type:
rotary handle
Network Type:
AC
Product Name:
TeSys GV3 || TeSys Deca
Mechanical Durability:
50000 cycles
Power Dissipation Per Pole:
8 W
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-2
Mechanical Robustness:
shocks 15 Gn for 11 ms contactor open || shocks 30 Gn for 11 ms contactor closed || vibrations 4 Gn, 5...300 Hz
Depth:
136 mm
Trip Unit Technology:
thermal-magnetic
Eu Rohs Directive:
Compliant with Exemptions
Height:
132 mm
Tightening Torque:
5 N.m screw clamp terminal
Brochure:
View
Datasheet:
View
