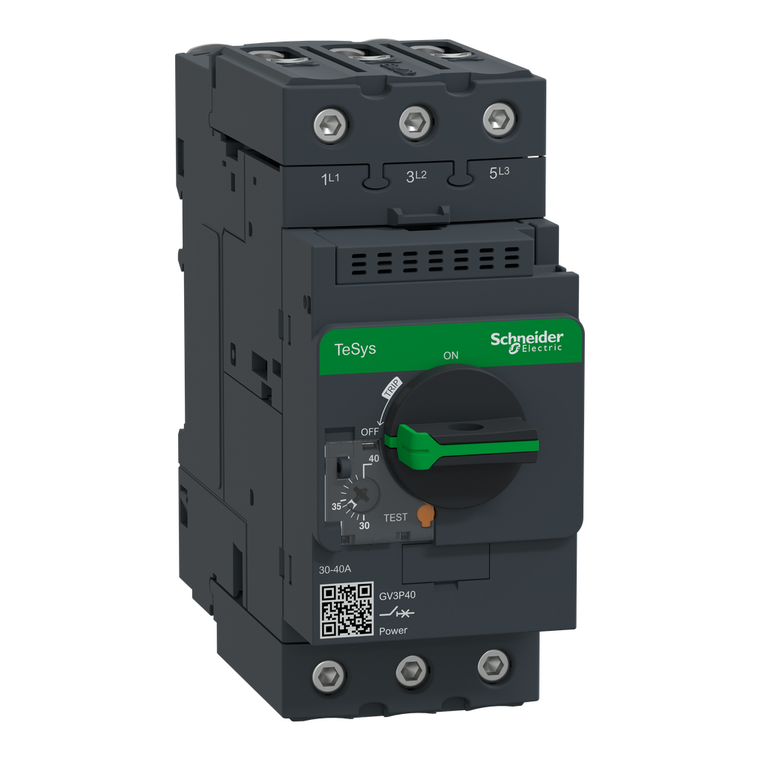

Schneider Electric GV3P40 Tesys Motor Cb Tho/Mag 30-40A Evlk

Schneider Electric GV3P40 Tesys Motor Cb Tho/Mag 30-40A Evlk

Schneider Electric
SKU:
GV3P40
|
UPC:
3389119405393
$504.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
The GV3 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV3PE controls motors with full load currents up to 65 amperes. The manual starter is three pole with horsepower ratings. The manual starter is operated by a rotary handle. The Class 10 ambient compensated thermal over current is adjustable from 30 ampere to 40 ampere. This device has EVERLINK terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Additional Information
Network Frequency:
50/60 Hz IEC 60947-4-1
Motor Power Kw:
18.5-18.5 kW 400/415 V AC 50/60 Hz || 22-22 kW 500 V AC 50/60 Hz || 37-37 kW 690 V AC 50/60 Hz
Electrical Durability:
50000 cycles AC-3 415 V In
Environmental Disclosure:
ENVPEP060901
Product Or Component Type:
motor circuit breaker
[Ith] Conventional Free Air Thermal Current:
40 A IEC 60947-4-1
Ambient Air Temperature For Operation:
-20-60 °C
Sustainable Offer Status:
Green Premium product
Mechanical Durability:
50000 cycles
Color:
dark grey
Range:
TeSys Deca
Ambient Air Temperature For Storage:
-40-80 °C
Suitability For Isolation:
yes IEC 60947-1
[Ui] Rated Insulation Voltage:
690 V AC 50/60 Hz IEC 60947-2
Magnetic Tripping Current:
560-560 A
Ik Degree Of Protection:
IK09 enclosure
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-2
Fixing Mode:
35 mm symmetrical DIN rail clipped || panel screwed with 3 x M4 screws)
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
IP20 IEC 60529
Trip Unit Technology:
thermal-magnetic
Breaking Capacity:
100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 12 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 6 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Control Type:
rotary handle
Phase Failure Sensitivity:
yes IEC 60947-4-1
Circularity Profile:
ENVEOLI060901
Width:
55 mm
Product Name:
TeSys GV3 || TeSys Deca
Utilisation Category:
AC-3 IEC 60947-4-1
Warranty:
18 months
Operating Altitude:
9842.52 ft (3000 m)
Mechanical Robustness:
shocks 15 Gn for 11 ms contactor open || shocks 30 Gn for 11 ms contactor closed || vibrations 4 Gn, 5...300 Hz
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Depth:
136 mm
Device Short Name:
GV3P
Rated Duty:
continuous IEC 60947-4-1
Tightening Torque:
5 N.m screw clamp terminal
Eu Rohs Directive:
Compliant with Exemptions
Thermal Protection Adjustment Range:
30-40 A IEC 60947-4-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height:
132 mm
Poles Description:
3P
Standards:
EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
Line Rated Current:
40 A
Product Certifications:
CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || ABS || DNV-GL || UKCA
Climatic Withstand:
IACS E10
Fire Resistance:
960 °C IEC 60695-2-11
California Proposition 65:
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Device Application:
motor protection
Net Weight:
0.96 kg
Network Type:
AC
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-2
Power Dissipation Per Pole:
8 W
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Ics] Rated Service Short-Circuit Breaking Capacity:
100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 50 % 500 V AC 50/60 Hz IEC 60947-2 || 50 % 690 V AC 50/60 Hz IEC 60947-2
