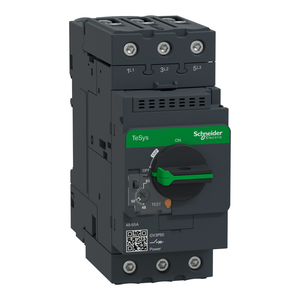

Schneider Electric GV3P50 Tesys 3P Motor Cb Tho/Mag 37-50A Evlk
Schneider Electric
$504.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
The GV3 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV3PE controls motors with full load currents up to 65 amperes. The manual starter is three pole with horsepower ratings. The manual starter is operated by a rotary handle. The Class 10 ambient compensated thermal over current is adjustable from 37 ampere to 50 ampere. This device has EVERLINK terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
- Ik Degree Of Protection:
- IK09 enclosure
- Sustainable Offer Status:
- Green Premium product
- [Ith] Conventional Free Air Thermal Current:
- 50 A IEC 60947-4-1
- Rohs Exemption Information:
- Yes
- Control Type:
- rotary handle
- Net Weight:
- 0.96 kg
- Product Or Component Type:
- motor circuit breaker
- Fire Resistance:
- 960 °C IEC 60695-2-11
- Device Short Name:
- GV3P
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Ui] Rated Insulation Voltage:
- 690 V AC 50/60 Hz IEC 60947-2
- Tightening Torque:
- 5 N.m screw clamp terminal
- Utilisation Category:
- AC-3 IEC 60947-4-1
- Environmental Disclosure:
- ENVPEP060901
- Depth:
- 136 mm
- Color:
- dark grey
- Network Type:
- AC
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Height:
- 132 mm
- Range:
- TeSys Deca
- Network Frequency:
- 50/60 Hz IEC 60947-4-1
- Product Name:
- TeSys GV3 || TeSys Deca
- Phase Failure Sensitivity:
- yes IEC 60947-4-1
- Electrical Durability:
- 50000 cycles AC-3 415 V In
- Operating Altitude:
- 9842.52 ft (3000 m)
- Ip Degree Of Protection:
- IP20 IEC 60529
- Mechanical Durability:
- 50000 cycles
- Line Rated Current:
- 50 A
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width:
- 55 mm
- Magnetic Tripping Current:
- 700-700 A
- Warranty:
- 18 months
- Ambient Air Temperature For Storage:
- -40-80 °C
- Suitability For Isolation:
- yes IEC 60947-1
- Rated Duty:
- continuous IEC 60947-4-1
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-2
- Breaking Capacity:
- 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 12 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 6 kA Icu 690 V AC 50/60 Hz IEC 60947-2
- Motor Power Kw:
- 22-22 kW 400/415 V AC 50/60 Hz || 30-30 kW 500 V AC 50/60 Hz || 45-45 kW 690 V AC 50/60 Hz
- Climatic Withstand:
- IACS E10
- Poles Description:
- 3P
- Ambient Air Temperature For Operation:
- -20-60 °C
- Trip Unit Technology:
- thermal-magnetic
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-2
- Circularity Profile:
- ENVEOLI060901
- [Ics] Rated Service Short-Circuit Breaking Capacity:
- 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 50 % 500 V AC 50/60 Hz IEC 60947-2 || 50 % 690 V AC 50/60 Hz IEC 60947-2
- Mechanical Robustness:
- shocks 15 Gn for 11 ms contactor open || shocks 30 Gn for 11 ms contactor closed || vibrations 4 Gn, 5...300 Hz
- Product Certifications:
- CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || ABS || DNV-GL || UKCA
- Eu Rohs Directive:
- Compliant with Exemptions
- Fixing Mode:
- 35 mm symmetrical DIN rail clipped || panel screwed with 3 x M4 screws)
- Thermal Protection Adjustment Range:
- 37-50 A IEC 60947-4-1
- Device Application:
- motor protection
- Standards:
- EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
- Mercury Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Power Dissipation Per Pole:
- 8 W
