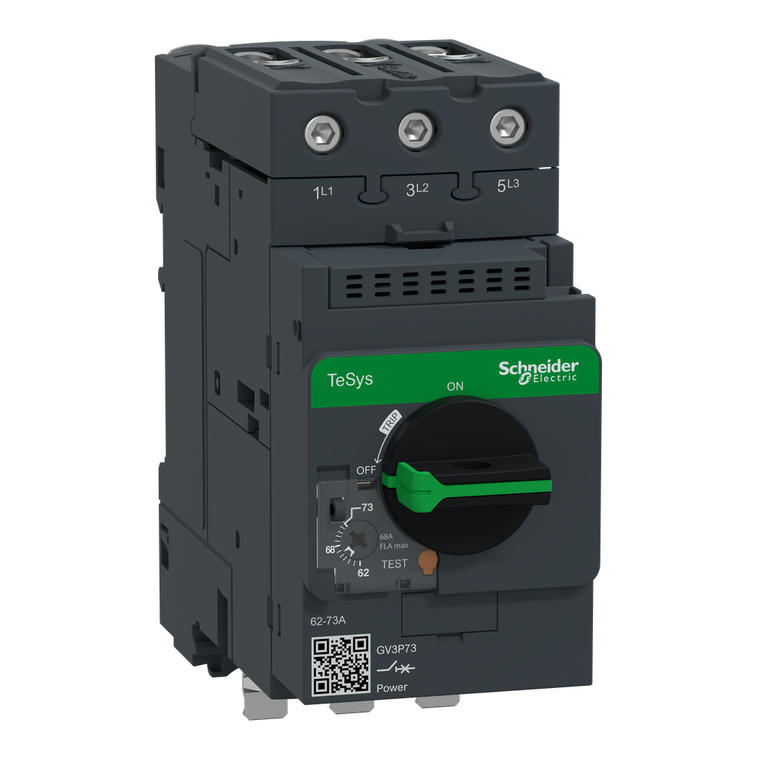

Schneider Electric GV3P731 Tesys Motor Cb Tho/Mag 62-73A Evlk

(No reviews yet) Write a Review

Write a Review

Schneider Electric GV3P731 Tesys Motor Cb Tho/Mag 62-73A Evlk

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

GV3P731

UPC:

3.60648E+12

MPN:

Condition:

New

Network Type:

AC

Magnetic Tripping Current:

1120-1120 A

Sustainable Offer Status:

Green Premium product

Motor Power Kw:

37-37 kW 400/415 V AC 50/60 Hz || 45-45 kW 500 V AC 50/60 Hz || 55-55 kW 690 V AC 50/60 Hz

Mechanical Robustness:

shocks 5 Gn for 11 ms contactor open || shocks 30 Gn for 11 ms contactor closed || vibrations 4 Gn, 5...300 Hz

Ip Degree Of Protection:

IP20 IEC 60529

Fixing Mode:

35 mm symmetrical DIN rail clipped || panel screwed with 3 x M4 screws)

Circularity Profile:

ENVEOLI060901

Height:

132 mm

Breaking Capacity:

65 kA Icu 230/240 V AC 50/60 Hz || 50 kA Icu 400/415 V AC 50/60 Hz || 50 kA Icu 440 V AC 50/60 Hz || 12 kA Icu 500 V AC 50/60 Hz || 6 kA Icu 690 V AC 50/60 Hz

Eu Rohs Directive:

Compliant with Exemptions

Product Certifications:

CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || ABS || DNV-GL || UKCA

Mercury Free:

Yes

Device Application:

motor protection

Environmental Disclosure:

ENVPEP060901

Power Dissipation Per Pole:

8 W

Mechanical Durability:

50000 cycles

Thermal Protection Adjustment Range:

62-73 A IEC 60947-4-1

Product Name:

TeSys GV3 || TeSys Deca

Range:

TeSys Deca

Width:

55 mm

Ambient Air Temperature For Operation:

-20-60 °C

Line Rated Current:

73 A

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz

Device Short Name:

GV3P

Suitability For Isolation:

yes IEC 60947-1

[Ics] Rated Service Short-Circuit Breaking Capacity:

100 % 230/240 V AC 50/60 Hz || 60 % 400/415 V AC 50/60 Hz || 60 % 440 V AC 50/60 Hz || 50 % 500 V AC 50/60 Hz || 50 % 690 V AC 50/60 Hz

Electrical Durability:

20000 cycles AC-3 415 V In

Phase Failure Sensitivity:

yes IEC 60947-4-1

Poles Description:

3P

Operating Altitude:

9842.52 ft (3000 m)

Net Weight:

0.96 kg

Control Type:

rotary handle

Utilisation Category:

AC-3 IEC 60947-4-1

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Network Frequency:

50/60 Hz

Warranty:

18 months

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Rated Duty:

continuous IEC 60947-4-1

Rohs Exemption Information:

Yes

Standards:

EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1

Color:

dark grey

Ambient Air Temperature For Storage:

-40-80 °C

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-2

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ik Degree Of Protection:

IK09 enclosure

[Ui] Rated Insulation Voltage:

690 V AC 50/60 Hz IEC 60947-2

Tightening Torque:

5 N.m screw clamp terminal

Fire Resistance:

960 °C IEC 60695-2-11

[Ith] Conventional Free Air Thermal Current:

73 A IEC 60947-4-1

Climatic Withstand:

IACS E10

Product Or Component Type:

motor circuit breaker

Trip Unit Technology:

thermal-magnetic

Depth:

136 mm

Datasheet:

View
