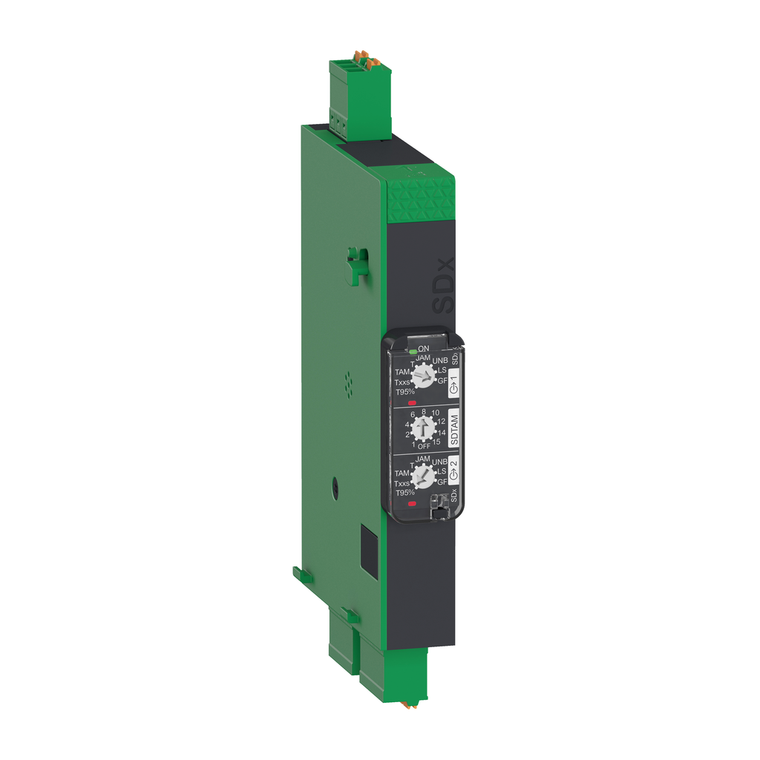

Schneider Electric GV4ADM1111 Fault Signalization Module Sdx For Gv4 Pack of 6

Schneider Electric GV4ADM1111 Fault Signalization Module Sdx For Gv4 Pack of 6

Schneider Electric
SKU:
GV4ADM1111
|
UPC:
3606481166753
Availability:
Contact us to confirm availability and lead times.
$2,106.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
TeSys GV4 auxiliary contact block, for multifunction motor circuit breakers GV4PEM, GV4PB. 2NO/NC fault signalling contacts, each NO/NC can perform one of 8 SD alarm or fault status (overload alarms, overload trip, jam, phase unbalance, long start, ground fault). The function of each NO/NC is selectable by a dial, a third dial is available to select the cooling time before automatic restart. Rated for operation up to 5A/250V AC and DC. To be installed on right-hand side of the circuit breaker (2 blocks mounting possible), connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Additional Information
Device Short Name:
GV4A
Environmental Disclosure:
ENVPEP1704004EN
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rohs Exemption Information:
Yes
[Ui] Rated Insulation Voltage:
250 V IEC 60947-1
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Ue] Rated Operational Voltage:
24...250 V AC || 24...250 V DC
Product Or Component Type:
auxiliary contact block
Mounting Mode:
clipped
Mounting Location:
right side
Circularity Profile:
ENVEOLI1704004EN
Mercury Free:
Yes
Range:
TeSys
Mechanical Durability:
100000 cycles
[Ith] Conventional Free Air Thermal Current:
0.208333333333333
Device Application:
signalling
Pole Contact Composition:
2 NO + 2 NC
Environmental Characteristic:
normal environment
Rated Operational Power In Va:
400 VA 230-240 V AC-12
Range Compatibility:
TeSys TeSys GV4 multifunction circuit breaker
Eu Rohs Directive:
Compliant with Exemptions
Associated Fuse Rating:
5 A gG conforming to IEC 60947-5-1
Rated Operational Power In W:
50 W 24 V DC-12
Minimum Switching Voltage:
17 V
Minimum Switching Current:
2 mA
