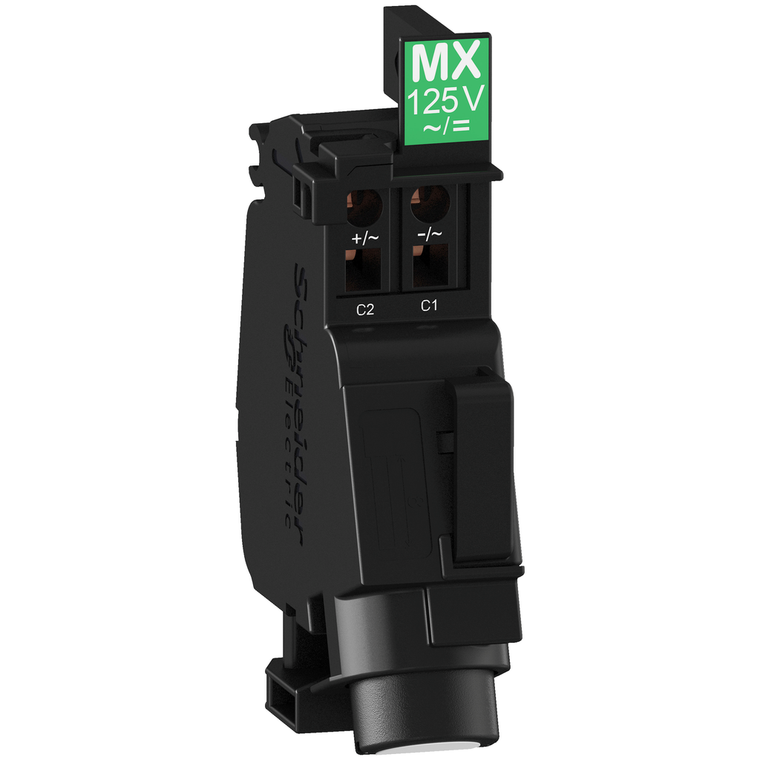

Schneider Electric GV4AS137 Coil St Mx 110-130V Ac/Dc For Gv4 Bv4

Schneider Electric GV4AS137 Coil St Mx 110-130V Ac/Dc For Gv4 Bv4

Schneider Electric
SKU:
GV4AS137
|
UPC:
3.60649E+12
Availability:
Contact us to confirm availability and lead times.
$185.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
TeSys GV electrical trip unit, MX shunt trip, 110-130V AC 50Hz/60Hz or 125V DC, for motor circuit breakers GV4. It trips the circuit breaker when the control voltage is applied in limits 0.7-1.1 Uc with an impulse duration greater than 20ms or a maintained signal. To be plugged inside the circuit breaker, connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Additional Information
Eu Rohs Directive:
Compliant with Exemptions
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Maximum Inrush Power In W:
4 W
Mercury Free:
Yes
Circularity Profile:
ENVEOLI2311043EN
Mounting Mode:
internal mounting
[Ui] Rated Insulation Voltage:
130 V IEC 60947-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmental Disclosure:
ENVPEP2311043EN
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Device Application:
control
Device Short Name:
MX
Connections - Terminals:
spring terminals 1 0.5-1.5 mm² - cable stiffness: flexible without cable end
Operating Time:
< 50 ms
Wire Stripping Length:
8 mm
Impulse Duration:
>= 20 ms
Mechanical Durability:
20000 cycles
Voltage Release Type:
shunt trip release
Quantity Per Set:
set of 1
Range Compatibility:
TeSys TeSys GV4 || TeSys TeSys BV4
Threshold Tripping Voltage:
0.7...1.1 Un failsafe opening || < 0.7 Un possible opening
Product Or Component Type:
voltage release
Range:
TeSys
Rohs Exemption Information:
Yes
Maximum Hold-In Power Consumption In Va:
10 VA
Maximum Hold-In Power Consumption In W:
1 W
Maximum Inrush Power In Va:
6 VA
[Uc] Control Circuit Voltage:
110...130 V AC 50/60 Hz || 125 V DC
