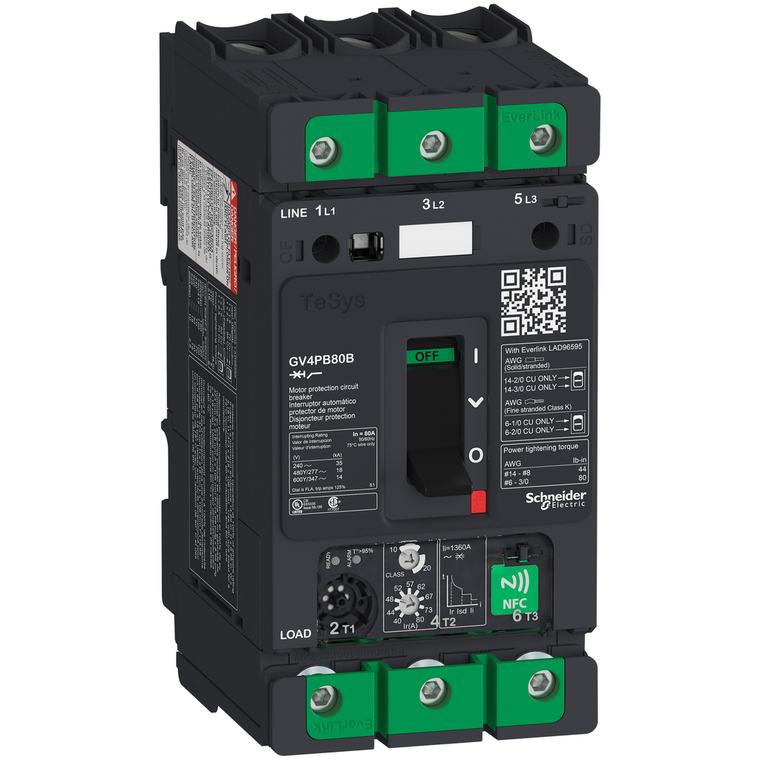

Schneider Electric GV4PB80B Motbreakgv4Pbul489Th/Mag 80A 25Ka Elink

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric GV4PB80B Motbreakgv4Pbul489Th/Mag 80A 25Ka Elink

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

GV4PB80B

UPC:

3606489868734

MPN:

Condition:

New

Poles Description:

3P

Range Of Product:

TeSys GV4

[Ui] Rated Insulation Voltage:

800 V AC 50/60 Hz IEC 60947-2

Breaking Capacity:

35 kA SCCR 240 V AC 60 Hz UL 489 || 18 kA SCCR 480Y/277 V AC 60 Hz UL 489 || 14 kA SCCR 600Y/347 V AC 60 Hz UL 489 || 50 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 || 25 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 || 20 kA Icu 440 V AC 50/60 Hz IEC 60947-

[Ics] Rated Service Short-Circuit Breaking Capacity:

100 % 220/240 V AC 50/60 Hz IEC 60947-2 || 100 % 380/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2

Power Dissipation Per Pole:

4.6 W

Control Type:

toggle

Mechanical Durability:

40000 cycles

Range:

TeSys Deca

Net Weight:

1.45 kg

Device Short Name:

GV4PB

Depth:

116 mm

Eu Rohs Directive:

Compliant with Exemptions

Pollution Degree:

3

Standards:

EN/IEC 60947-1 || EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 489 || CSA C22.2 No 5

Mechanical Robustness:

vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 || vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 || shocks 15 gn 11 ms IEC 60068-2-27

Line Rated Current:

80 A

Suitability For Isolation:

yes IEC 60947-1

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz IEC 60947-2 || 600Y/347 V AC 60 Hz UL 489

Fire Resistance:

960 °C IEC 60695-2-11

Halogen Content Performance:

Halogen free plastic parts product

Ip Degree Of Protection:

IP40 IEC 60529

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Warranty:

18 months

Trip Unit Technology:

electronic || thermal-magnetic

Tightening Torque:

9 N.m 16-95 mm² || 5 N.m 1.5-10 mm²

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Certifications:

IEC || UL || CSA

Maximum Operating Rate:

25 cyc/h

Climatic Withstand:

IACS E10

Ambient Air Temperature For Storage:

-50-85 °C

Device Application:

motor protection

Product Or Component Type:

motor circuit breaker

Color:

Gray RAL 7016)

Circularity Profile:

ENVEOLI1704004EN

Mercury Free:

Yes

Product Name:

TeSys GV4 || TeSys Deca

Phase Failure Sensitivity:

yes IEC 60947-4-1

Height:

171 mm

Electrical Durability:

14000 cycles AC-3 440 V In/2 || 7000 cycles AC-3 440 V In

Utilisation Category:

category A IEC 60947-2 || AC-3 IEC 60947-4-1

Operating Altitude:

5000 m

Rated Duty:

continuous IEC 60947-4-1

Environmental Disclosure:

ENVPEP1704004EN

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Magnetic Tripping Current:

1360-1360 A

Sustainable Offer Status:

Green Premium product

Rohs Exemption Information:

Yes

Ambient Air Temperature For Operation:

-25-70 °C

Ik Degree Of Protection:

IK07 IEC 62262

Operating Position:

any position

[Ith] Conventional Free Air Thermal Current:

115 A IEC 60947-4-1

Width:

81 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Pvc Free:

Yes

Connections - Terminals:

EverLink BTR screw connectors top) 1 1.5-70 mm² - rigid || EverLink BTR screw connectors top) 1 1.5-50 mm² - flexible || EverLink BTR screw connectors bottom) 1 2.5-95 mm² - rigid || EverLink BTR screw connectors bottom) 1 2.5-70 mm² - flexible

Datasheet:

View
