Schneider Electric GV4PB80S Motbreakgv4Pbul489Th/Mag 80A 100Ka Elink

Schneider Electric GV4PB80S Motbreakgv4Pbul489Th/Mag 80A 100Ka Elink

Schneider Electric
SKU:
GV4PB80S
|
UPC:
3606489868697
$636.00
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

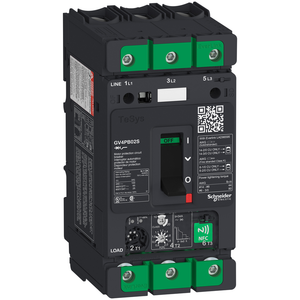

TeSys GV motor circuit breaker, 3 poles (3P), 80A/690V, for protection of 3-phase motors 22-37kW@400V. Multifunction circuit breaker UL489 compliant, it provides thermal magnetic protection and advanced motor protection, breaking capacity Icu 100kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 40-80A, a selectable tripping class 10 or 20, rated tripping current 125%, magnetic protection at 17 In. Advanced protections are adjustable with a smartphone using wireless NFC and include short time delay protection Isd with a setting range 5-13 Ir, phase unbalance and loss protection, ground fault protection, locked rotor (jam), long start. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). It can be equiped externally with 1 or 2 auxiliary SDx modules in order to have alarming and fault differentiation. Multi standards certified (IEC, UL 489, CSA C22.2 N°5), Green Premium compliant (RoHS/REACh).
Additional Information
Width:
81 mm
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Sustainable Offer Status:
Green Premium product
Device Application:
motor protection
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP1704004EN
Connections - Terminals:
EverLink BTR screw connectors top) 1 1.5-70 mm² - rigid || EverLink BTR screw connectors top) 1 1.5-50 mm² - flexible || EverLink BTR screw connectors bottom) 1 2.5-95 mm² - rigid || EverLink BTR screw connectors bottom) 1 2.5-70 mm² - flexible
Pvc Free:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ambient Air Temperature For Operation:
-25-70 °C
Eu Rohs Directive:
Compliant with Exemptions
Breaking Capacity:
100 kA SCCR 240 V AC 60 Hz UL 489 || 65 kA SCCR 480Y/277 V AC 60 Hz UL 489 || 25 kA SCCR 600Y/347 V AC 60 Hz UL 489 || 120 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 || 70 kA Icu 440 V AC 50/60 Hz IEC 609
Product Or Component Type:
motor circuit breaker
Trip Unit Technology:
thermal-magnetic || electronic
Depth:
116 mm
Rated Duty:
continuous IEC 60947-4-1
Circularity Profile:
ENVEOLI1704004EN
Mechanical Durability:
40000 cycles
Range:
TeSys Deca
Poles Description:
3P
Utilisation Category:
category A IEC 60947-2 || AC-3 IEC 60947-4-1
[Ics] Rated Service Short-Circuit Breaking Capacity:
100 % 220/240 V AC 50/60 Hz IEC 60947-2 || 100 % 380/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 100 % 525 V AC 50/60 Hz IEC 60947-2 || 25 % 660/690 V AC 50/60 Hz IEC 60947-2
Halogen Content Performance:
Halogen free plastic parts product
[Ith] Conventional Free Air Thermal Current:
115 A IEC 60947-4-1
Fire Resistance:
960 °C IEC 60695-2-11
Warranty:
18 months
Standards:
EN/IEC 60947-1 || EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 489 || CSA C22.2 No 5
[Ui] Rated Insulation Voltage:
800 V AC 50/60 Hz IEC 60947-2
Ambient Air Temperature For Storage:
-50-85 °C
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Product Certifications:
IEC || UL || CSA
Power Dissipation Per Pole:
4.6 W
Pollution Degree:
3
Operating Altitude:
5000 m
Magnetic Tripping Current:
1360-1360 A
Suitability For Isolation:
yes IEC 60947-1
Electrical Durability:
14000 cycles AC-3 440 V In/2 || 7000 cycles AC-3 440 V In
Mechanical Robustness:
vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 || vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 || shocks 15 gn 11 ms IEC 60068-2-27
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Color:
Gray RAL 7016)
Tightening Torque:
9 N.m 16-95 mm² || 5 N.m 1.5-10 mm²
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-2 || 600Y/347 V AC 60 Hz UL 489
Maximum Operating Rate:
25 cyc/h
Phase Failure Sensitivity:
yes IEC 60947-4-1
Mercury Free:
Yes
Ip Degree Of Protection:
IP40 IEC 60529
Net Weight:
1.45 kg
Climatic Withstand:
IACS E10
Operating Position:
any position
Device Short Name:
GV4PB
Control Type:
toggle
Product Name:
TeSys GV4 || TeSys Deca
Line Rated Current:
80 A
Ik Degree Of Protection:
IK07 IEC 62262
Range Of Product:
TeSys GV4
Height:
171 mm
