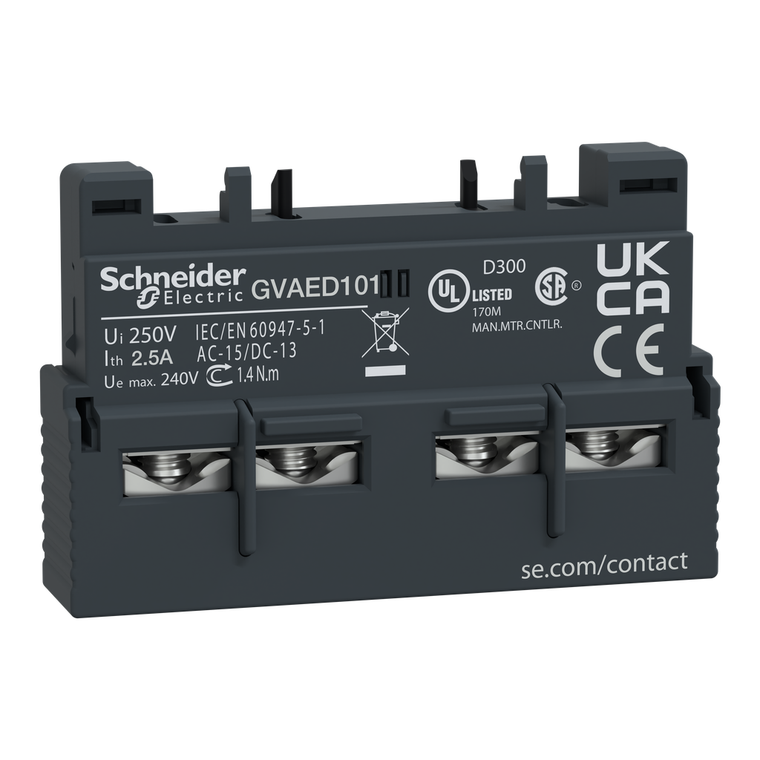

Schneider Electric GVAED101 Tesys N/O Fault Ctr N/O Inst For Gv3P/L

Schneider Electric GVAED101 Tesys N/O Fault Ctr N/O Inst For Gv3P/L

Schneider Electric
SKU:
GVAED101
|
UPC:
3389119405478
Availability:
Factory stock
$59.71
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
TeSys Deca auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 2NO contacts rated up to 10A 690V AC, On-delay setting range 10-180s Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).
Additional Information
Sustainable Offer Status:
Green Premium product
Environmental Characteristic:
normal environment
Width:
45 mm
Mounting Location:
front side
Reach Free Of Svhc:
Yes
Range:
TeSys || TeSys Deca
Toxic Heavy Metal Free:
Yes
Product Certifications:
UKCA
[Ue] Rated Operational Voltage:
24...240 V AC || 24...60 V DC
Mechanical Durability:
100000 cycles
[Ui] Rated Insulation Voltage:
600 V UL 508 || 690 V IEC 60947-1 || 600 V CSA C22.2 No 14
Net Weight:
0.05 kg
Depth:
29 mm
Product Or Component Type:
auxiliary contact block
Tightening Torque:
1.4 N.m screw clamp terminals
Auxiliary Contacts Operation:
fault signal 1 NO
Eu Rohs Directive:
Compliant
Rohs Exemption Information:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rated Operational Power In W:
120 W 240 V DC-13 100000 cycles || 140 W 110 V DC-13 100000 cycles || 140 W 24 V DC-13 100000 cycles || 180 W 60 V DC-13 100000 cycles || 240 W 48 V DC-13 100000 cycles
Protection Type:
GB2CB... circuit breaker || gG fuse 10 A
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Height:
11 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Circularity Profile:
ENVEOLI2207006
Minimum Switching Voltage:
17 V
Minimum Switching Current:
5 mA
Product Compatibility:
GV3P || GV3L
Environmental Disclosure:
ENVPEP2207006
Mercury Free:
Yes
Pole Contact Composition:
2 NO
Device Short Name:
GVAED
Warranty:
18 months
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Rated Operational Power In Va:
300 VA 48-48 V AC-15 100000 cycles || 400 VA 690-690 V AC-15 100000 cycles || 500 VA 110-127 V AC-15 100000 cycles || 500 VA 500-500 V AC-15 100000 cycles || 650 VA 440-440 V AC-15 100000 cycles || 720 VA 230-240 V AC-15 100000 cycles || 850 VA 380-4
Quantity Per Set:
set of 1
[Ith] Conventional Free Air Thermal Current:
2.5 A
Datasheet:
View
