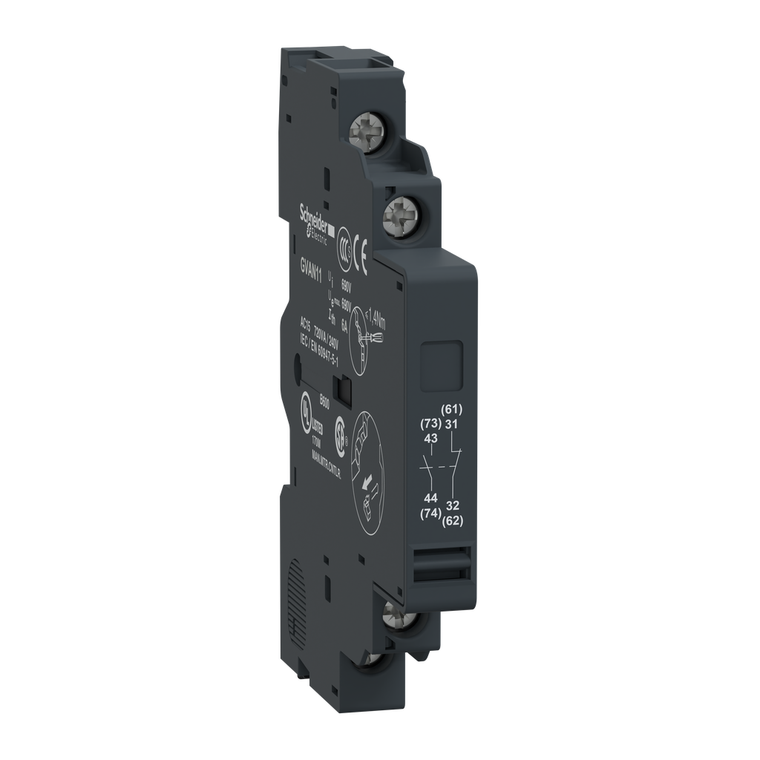

Schneider Electric GVAN11 Tesys Side Mount Aux. No/Nc

Schneider Electric GVAN11 Tesys Side Mount Aux. No/Nc

Schneider Electric
SKU:
GVAN11
|
UPC:
3389110343489
$35.70
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 6A/690V AC and 6A/240V DC. To be installed on left-hand side of the circuit breaker (2 blocks mounting possible), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Additional Information
Device Short Name:
GVAN
Pole Contact Composition:
1 NO + 1 NC
Sustainable Offer Status:
Green Premium product
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rohs Exemption Information:
Yes
Mounting Location:
left side
Minimum Switching Current:
5 mA
Range:
TeSys || TeSys Deca
Width:
9.3 mm
Reach Free Of Svhc:
Yes
Eu Rohs Directive:
Compliant
Minimum Switching Voltage:
17 V
Net Weight:
0.05 kg
[Ue] Rated Operational Voltage:
48...690 V AC || 24...240 V DC
[Ith] Conventional Free Air Thermal Current:
0.25
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Protection Type:
GB2CB... circuit breaker || gG fuse 10 A
Warranty:
18 months
Mechanical Durability:
100000 cycles
Toxic Heavy Metal Free:
Yes
Height:
89 mm
Product Certifications:
UKCA
Depth:
66 mm
Environmental Disclosure:
ENVPEP2207006
Tightening Torque:
1.4 N.m screw clamp terminals
Mercury Free:
Yes
Product Or Component Type:
auxiliary contact block
Rated Operational Power In W:
120 W 240 V DC-13 100000 cycles || 140 W 110 V DC-13 100000 cycles || 140 W 24 V DC-13 100000 cycles || 180 W 60 V DC-13 100000 cycles || 240 W 48 V DC-13 100000 cycles
[Ui] Rated Insulation Voltage:
600 V UL 508 || 690 V IEC 60947-1 || 600 V CSA C22.2 No 14
Product Compatibility:
GV2ME || GV2RT || GV2L || GV3P || GV3L || GV2LE || GV2P
Environmental Characteristic:
normal environment
Rated Operational Power In Va:
300 VA 48-48 V AC-15 100000 cycles || 414 VA 690-690 V AC-15 100000 cycles || 500 VA 110-127 V AC-15 100000 cycles || 500 VA 500-500 V AC-15 100000 cycles || 650 VA 440-440 V AC-15 100000 cycles || 720 VA 230-240 V AC-15 100000 cycles || 850 VA 380-4
Circularity Profile:
ENVEOLI2207006
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Color:
dark grey
California Proposition 65:
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Catalog:
View
Datasheet:
View
