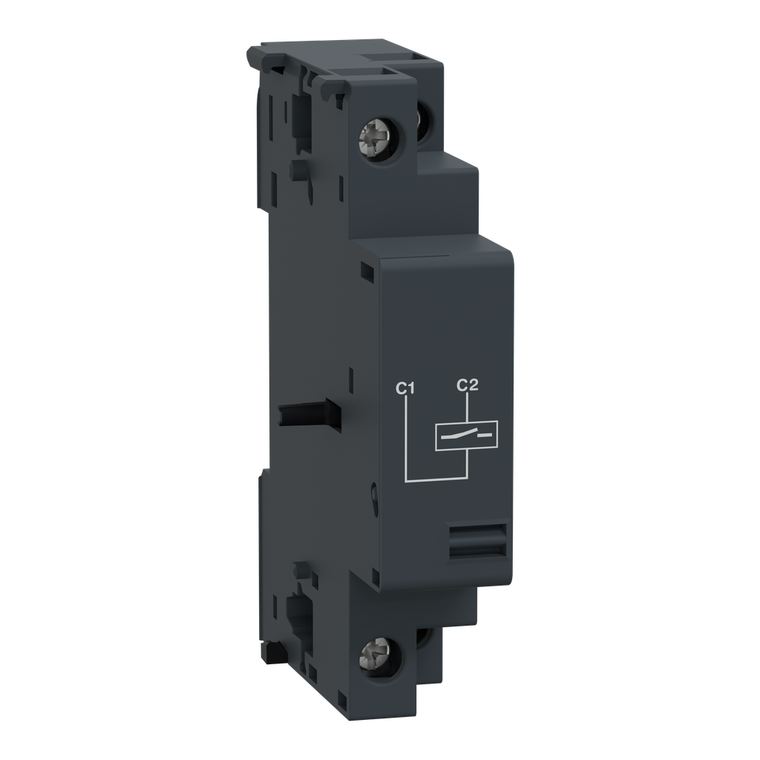

Schneider Electric GVAS207 Tesys Shunt Trip 200/220V50-60
TeSys GV electrical trip, MX shunt release, 200V AC 50Hz / 200-220V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage is applied in limits 0.7-1.1 Uc with an impulse duration greater than 20ms or a maintained signal. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
- Control Circuit Voltage Limits:
- 0.7...1.1 Un
- Quantity Per Set:
- set of 10
- On-Load Factor:
- 1
- Range:
- TeSys || TeSys Deca
- Depth:
- 66 mm
- Color:
- dark grey
- Product Or Component Type:
- shunt trip release
- Mercury Free:
- Yes
- Inrush Power In Va:
- 14-14 VA AC
- Connections - Terminals:
- screw clamp terminals 1 1-2.5 mm²solid || screw clamp terminals 2 1-2.5 mm²solid || screw clamp terminals 1 0.75-2.5 mm²flexible without cable end || screw clamp terminals 2 0.75-2.5 mm²flexible without cable end || screw clamp terminals 1 0.75-1
- Tightening Torque:
- < 1.4 N.m screw clamp terminals
- Operating Time:
- 10...15 ms IEC 60947-1
- Rohs Exemption Information:
- Yes
- Range Compatibility:
- TeSys GV2ME || TeSys GV2LE || TeSys GV2L || TeSys GV2P || TeSys GV3L || TeSys GV3P || TeSys Deca
- Net Weight:
- 0.105 kg
- Toxic Heavy Metal Free:
- Yes
- Hold-In Power Consumption In W:
- 1.6-1.6 W
- [Ui] Rated Insulation Voltage:
- 690 V AC IEC 60947-1 || 600 V AC UL 60947-4-1 || 600 V AC CSA C22.2 No 60947-4-1
- Reach Free Of Svhc:
- Yes
- Device Short Name:
- GVAS
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Inrush Power In W:
- 10.5 W
- Mechanical Durability:
- 10000 cycles with GV3P and GV3L || 30000 cycles with GV2ME and GV2P
- [Uc] Control Circuit Voltage:
- 200 V AC 50 Hz || 200...220 V AC 60 Hz
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width:
- 18 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Compliant
- Height:
- 89 mm
- Warranty:
- 18 months
- Threshold Tripping Voltage:
- 0.75...0.2 Un
- Hold-In Power Consumption In Va:
- 5-5 VA AC
- Datasheet:
- View
