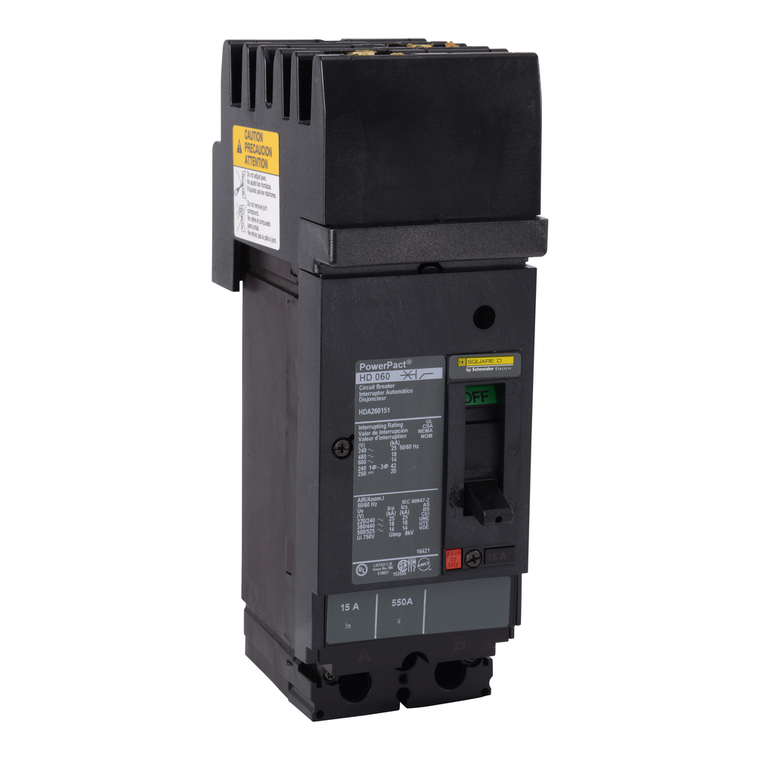

Schneider Electric HDA260154 Molded Case Circuit Breaker 600V 15A

Schneider Electric HDA260154 Molded Case Circuit Breaker 600V 15A

Schneider Electric
SKU:
HDA260154
|
UPC:
7.85901E+11
Availability:
Factory stock
$818.65
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 15A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with a BC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Suitability For Isolation:
yes IEC 60947-2
Ambient Air Temperature For Operation:
-2-70 °C
Net Weight:
2.2 kg
Eu Rohs Directive:
Compliant
Pvc Free:
Yes
Mounting Height:
3 in
Circuit Breaker Application:
HACR rated
Height:
163 mm
Range:
PowerPact
Depth:
86 mm
Poles Description:
2P
Wire Stripping Length:
16 mm
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Ambient Air Temperature For Storage:
-50-85 °C
Circularity Profile:
ENVEOLI1311006EN
Pollution Degree:
3 IEC 60947-1
Environmental Disclosure:
ENVPEP1311006EN
Product Name:
PowerPact H
Product Certifications:
UL || CSA || NOM
Utilisation Category:
category A
Phase Connection:
BC
Mercury Free:
Yes
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Width:
104 mm
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Network Frequency:
50/60 Hz
Mounting Support:
bracket
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Magnetic Tripping Current:
750-750 A
Quantity Per Set:
1
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Local Signalling:
switched off (OFF) 1 trip indicator green)
Device Application:
distribution
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Magnetic Hold Current:
350 A
Warranty:
18 months
Color:
Black
Control Type:
toggle
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Ip Degree Of Protection:
front cover IP40 IEC 60529
Protected Poles Description:
2t
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Terminal Identifier:
AL150HD
Product Or Component Type:
circuit breaker
Trip Unit Technology:
thermal-magnetic
Quality Labels:
CE
Breaking Capacity Code:
D
Continuous Current Rating:
0.8
Mounting Mode:
I-Line bracket)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Line Rated Current:
15-15 A
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Electrical Connection:
I-Line connection, line || lugs, load
Communication Interface:
Modbus || Ethernet
