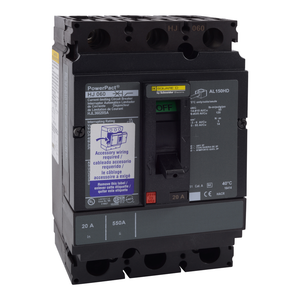

Schneider Electric HLL36020 Molded Case Circuit Breaker 600V 20A
Schneider Electric
Schneider Electric HDA260204 Molded Case Circuit Breaker 600V 20A
Schneider Electric
$899.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 20A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with a BC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Communication Interface:
- Modbus || Ethernet
- Device Application:
- distribution
- Warranty:
- 18 months
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Height:
- 163 mm
- Range:
- PowerPact
- Trip Unit Technology:
- thermal-magnetic
- Phase Connection:
- BC
- Ambient Air Temperature For Operation:
- -2-70 °C
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Circularity Profile:
- ENVEOLI2206027EN
- Continuous Current Rating:
- 0.8
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Product Certifications:
- UL || CSA || NOM
- Mercury Free:
- Yes
- Color:
- Black
- Product Name:
- PowerPact H
- Width:
- 104 mm
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Depth:
- 86 mm
- Magnetic Hold Current:
- 350 A
- Electrical Connection:
- I-Line connection, line || lugs, load
- Mounting Height:
- 3 in
- Utilisation Category:
- category A
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Quantity Per Set:
- 1
- Eu Rohs Directive:
- Compliant with Exemptions
- Suitability For Isolation:
- yes IEC 60947-2
- Wire Stripping Length:
- 16 mm
- Terminal Identifier:
- AL150HD
- Environmental Disclosure:
- ENVPEP2206027EN
- Line Rated Current:
- 20-20 A
- Net Weight:
- 2.2 kg
- Pvc Free:
- Yes
- Protected Poles Description:
- 2t
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Pollution Degree:
- 3 IEC 60947-1
- Quality Labels:
- CE
- Circuit Breaker Application:
- HACR rated
- Product Or Component Type:
- circuit breaker
- Network Frequency:
- 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Mounting Support:
- bracket
- Control Type:
- toggle
- Mounting Mode:
- I-Line bracket)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Magnetic Tripping Current:
- 750-750 A
- Poles Description:
- 2P
- Ambient Air Temperature For Storage:
- -50-85 °C
- Breaking Capacity Code:
- D
- Rohs Exemption Information:
- Yes
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
