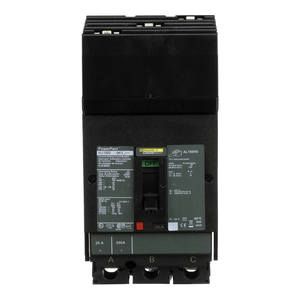

Schneider Electric HDA260252 Molded Case Circuit Breaker 600V 25A

(No reviews yet) Write a Review

Write a Review

Schneider Electric HDA260252 Molded Case Circuit Breaker 600V 25A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HDA260252

UPC:

785901416432

MPN:

Condition:

New

Eu Rohs Directive:

Compliant

Mounting Support:

bracket

Rohs Exemption Information:

Yes

Magnetic Hold Current:

350 A

Product Name:

PowerPact H

Magnetic Tripping Current:

750-750 A

Quantity Per Set:

1

Sustainable Offer Status:

Green Premium product

Breaking Capacity:

25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC

Net Weight:

2.2 kg

Quality Labels:

CE

Electrical Connection:

I-Line connection, line || lugs, load

Color:

Black

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz IEC 60947-3

Terminal Identifier:

AL150HD

Product Or Component Type:

circuit breaker

Ambient Air Temperature For Storage:

-50-85 °C

Phase Connection:

AC

Continuous Current Rating:

0.8

Range:

PowerPact

Breaking Capacity Code:

D

Pollution Degree:

3 IEC 60947-1

Ip Degree Of Protection:

front cover IP40 IEC 60529

Suitability For Isolation:

yes IEC 60947-2

Pvc Free:

Yes

Depth:

86 mm

Mounting Height:

3 in

Width:

104 mm

Local Signalling:

switched off (OFF) 1 trip indicator green)

Utilisation Category:

category A

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Ambient Air Temperature For Operation:

-2-70 °C

Network Frequency:

50/60 Hz

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Trip Unit Technology:

thermal-magnetic

Communication Interface:

Modbus || Ethernet

Mercury Free:

Yes

Mounting Mode:

I-Line bracket)

[Ics] Rated Service Breaking Capacity:

25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Circuit Breaker Application:

HACR rated

Device Application:

distribution

Tightening Torque:

5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)

Line Rated Current:

25-25 A

Circularity Profile:

ENVEOLI1311006EN

Environmental Disclosure:

ENVPEP1311006EN

Product Certifications:

UL || CSA || NOM

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Wire Stripping Length:

16 mm

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Control Type:

toggle

Poles Description:

2P

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Protected Poles Description:

2t

Warranty:

18 months

Height:

163 mm

Awg Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Brochure:

View

Catalog:

View

Datasheet:

View
