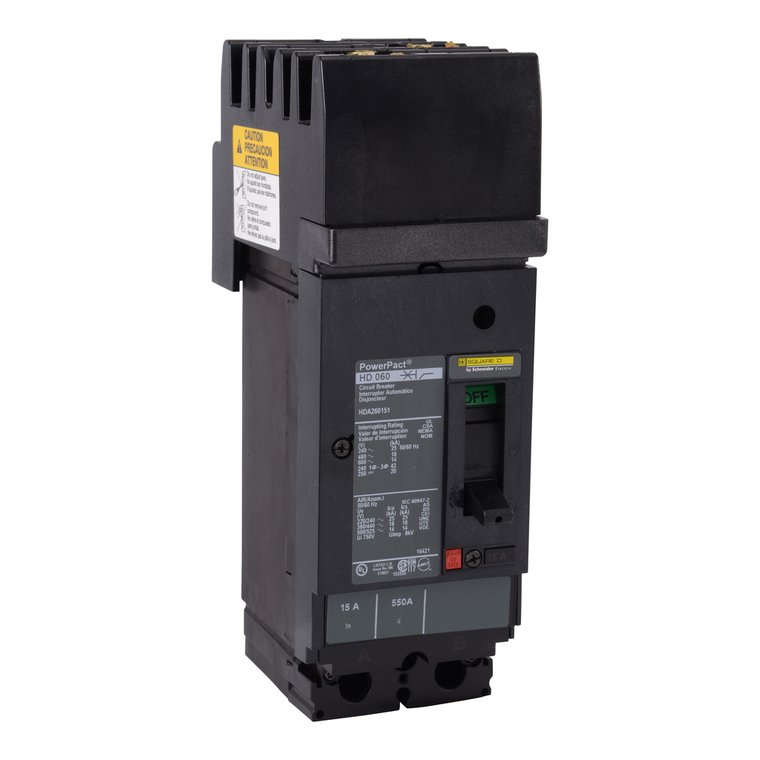

Schneider Electric HDA260452 Molded Case Circuit Breaker 600V 45A

(No reviews yet) Write a Review

Write a Review

Schneider Electric HDA260452 Molded Case Circuit Breaker 600V 45A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HDA260452

UPC:

7.85902E+11

MPN:

Condition:

New

Mounting Height:

3 in

Quality Labels:

CE

Device Application:

distribution

Utilisation Category:

category A

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Color:

Black

Control Type:

toggle

Mercury Free:

Yes

Rohs Exemption Information:

Yes

Communication Interface:

Modbus || Ethernet

Height:

163 mm

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Continuous Current Rating:

0.8

Pvc Free:

Yes

Wire Stripping Length:

16 mm

Magnetic Tripping Current:

850-850 A

Sustainable Offer Status:

Green Premium product

Circularity Profile:

ENVEOLI1311006EN

Suitability For Isolation:

yes IEC 60947-2

Magnetic Hold Current:

400 A

Mounting Support:

bracket

Eu Rohs Directive:

Compliant

Breaking Capacity:

25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC

Ip Degree Of Protection:

front cover IP40 IEC 60529

Pollution Degree:

3 IEC 60947-1

Product Certifications:

UL || CSA || NOM

Protected Poles Description:

2t

Environmental Disclosure:

ENVPEP1311006EN

[Ics] Rated Service Breaking Capacity:

25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Phase Connection:

AC

Awg Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Trip Unit Technology:

thermal-magnetic

Ambient Air Temperature For Storage:

-50-85 °C

Poles Description:

2P

Depth:

86 mm

Tightening Torque:

5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)

Product Or Component Type:

circuit breaker

Local Signalling:

switched off (OFF) 1 trip indicator green)

Network Frequency:

50/60 Hz

Mounting Mode:

I-Line bracket)

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz IEC 60947-3

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Line Rated Current:

45-45 A

Product Name:

PowerPact H

Circuit Breaker Application:

HACR rated

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Terminal Identifier:

AL150HD

Range:

PowerPact

Width:

104 mm

Quantity Per Set:

1

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Breaking Capacity Code:

D

Net Weight:

2.2 kg

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Warranty:

18 months

Electrical Connection:

I-Line connection, line || lugs, load

Ambient Air Temperature For Operation:

-2-70 °C
