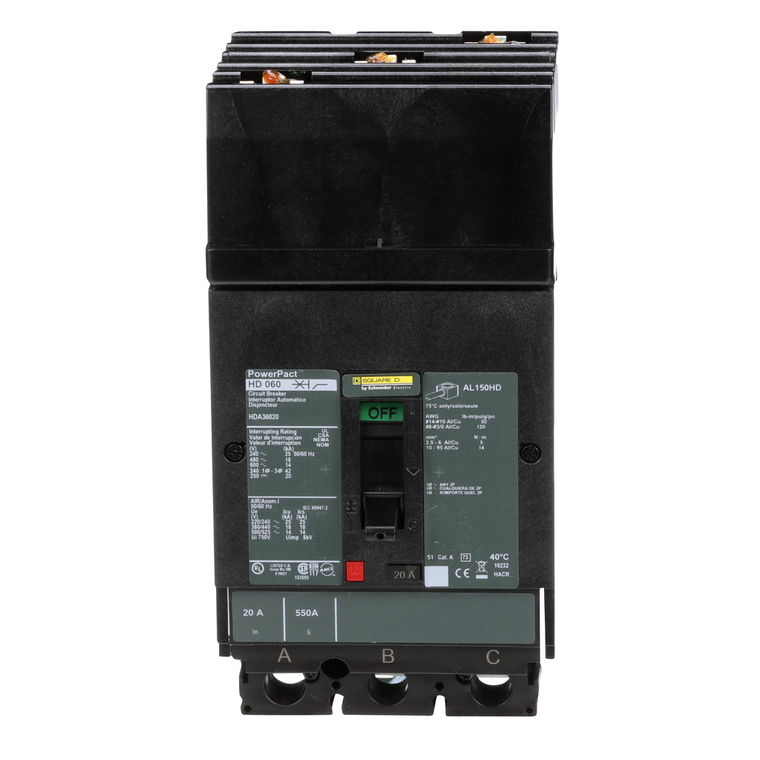

Schneider Electric HDA36020 Molded Case Circuit Breaker 600V 20A

Schneider Electric HDA36020 Molded Case Circuit Breaker 600V 20A

Schneider Electric
SKU:
HDA36020
|
UPC:
785901405245
Availability:
Contact us to confirm availability and lead times.
$1,124.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 20A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Mounting Height:
4.5 in
Trip Unit Technology:
thermal-magnetic
Electrical Connection:
I-Line connection, line || lugs, load
Device Application:
distribution
Product Or Component Type:
circuit breaker
Phase Connection:
ABC
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Local Signalling:
switched off (OFF) 1 trip indicator green)
Line Rated Current:
20-20 A
Sustainable Offer Status:
Green Premium product
Breaking Capacity Code:
D
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Color:
Black
Circularity Profile:
ENVEOLI2206027EN
Mercury Free:
Yes
Quantity Per Set:
1
Circuit Breaker Application:
HACR rated
Magnetic Tripping Current:
750-750 A
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Wire Stripping Length:
16 mm
Eu Rohs Directive:
Compliant with Exemptions
Ip Degree Of Protection:
front cover IP40 IEC 60529
Product Certifications:
UL || CSA || NOM
Magnetic Hold Current:
350 A
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Mounting Support:
bracket
Width:
104 mm
Mounting Mode:
I-Line bracket)
Protected Poles Description:
3t
Pollution Degree:
3 IEC 60947-1
Product Name:
PowerPact H
Quality Labels:
CE
Poles Description:
3P
Continuous Current Rating:
0.8
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Pvc Free:
Yes
Range:
PowerPact
Depth:
86 mm
Warranty:
18 months
Communication Interface:
Modbus || Ethernet
Control Type:
toggle
Environmental Disclosure:
ENVPEP2206027EN
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Net Weight:
2.2 kg
Height:
163 mm
Utilisation Category:
category A
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Rohs Exemption Information:
Yes
Suitability For Isolation:
yes IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Terminal Identifier:
AL150HD
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Network Frequency:
50/60 Hz
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Ambient Air Temperature For Operation:
-2-70 °C
Ambient Air Temperature For Storage:
-50-85 °C
