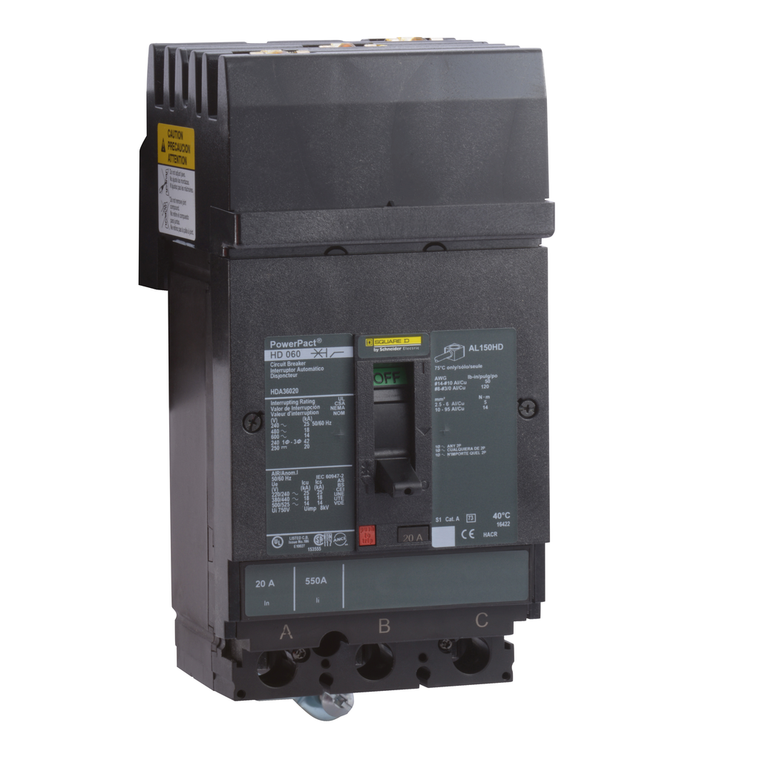

Schneider Electric HDA36100SA Molded Case Circuit Breaker 600V 100A

Schneider Electric HDA36100SA Molded Case Circuit Breaker 600V 100A

Schneider Electric
SKU:
HDA36100SA
|
UPC:
785901228783
Availability:
Contact us to confirm availability and lead times.
$3,117.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This unit includes a factory installed 120VAC shunt trip. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Line Rated Current:
100-100 A
Environmental Disclosure:
ENVPEP1311006EN
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Ambient Air Temperature For Operation:
-2-70 °C
Circuit Breaker Application:
HACR rated
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Protected Poles Description:
3t
Mounting Mode:
I-Line bracket)
Magnetic Hold Current:
900 A
Accessory / Separate Part Type:
shunt trip 110...130 V AC compartment
Color:
Black
Wire Stripping Length:
16 mm
Range:
PowerPact
Suitability For Isolation:
yes IEC 60947-2
Eu Rohs Directive:
Compliant
Magnetic Tripping Current:
1700-1700 A
Trip Unit Technology:
thermal-magnetic
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Network Frequency:
50/60 Hz
Warranty:
18 months
Pollution Degree:
3 IEC 60947-1
Product Name:
PowerPact H
Quantity Per Set:
1
Continuous Current Rating:
0.8
Terminal Identifier:
AL150HD
Phase Connection:
ABC
Utilisation Category:
category A
Product Or Component Type:
circuit breaker
Ambient Air Temperature For Storage:
-50-85 °C
Electrical Connection:
I-Line connection, line || lugs, load
Height:
163 mm
Net Weight:
2.2 kg
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mercury Free:
Yes
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Ip Degree Of Protection:
front cover IP40 IEC 60529
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Pvc Free:
Yes
Product Certifications:
UL || CSA || NOM
Quality Labels:
CE
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Width:
104 mm
Local Signalling:
switched off (OFF) 1 trip indicator green)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Rohs Exemption Information:
Yes
Mounting Support:
bracket
Device Application:
distribution
Sustainable Offer Status:
Green Premium product
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Mounting Height:
4.5 in
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Depth:
86 mm
Control Type:
toggle
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Breaking Capacity Code:
D
Circularity Profile:
ENVEOLI1311006EN
Communication Interface:
Modbus || Ethernet
Poles Description:
3P
