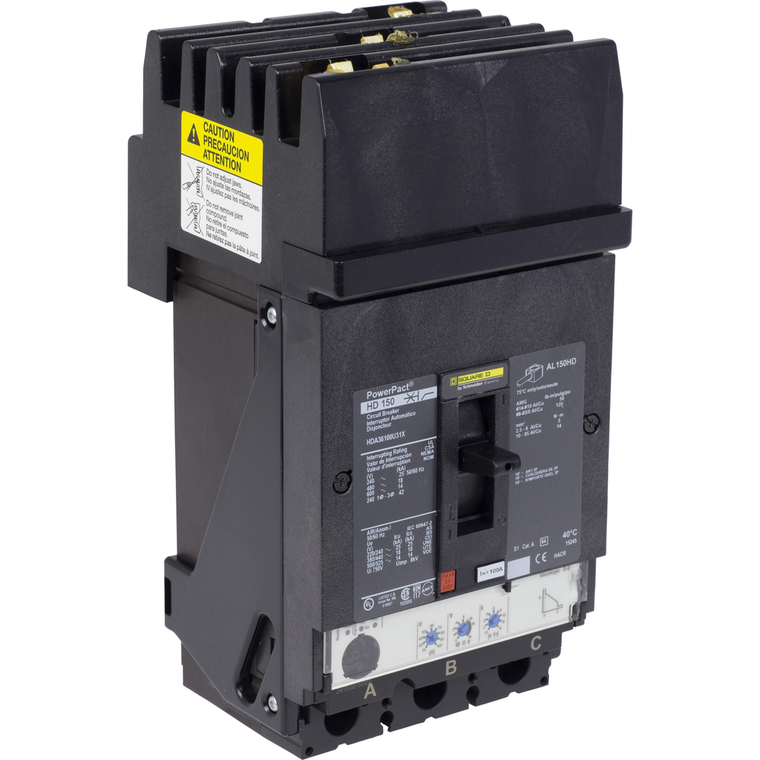

Schneider Electric HDA36100U33X Molded Case Circuit Breaker 600V 100A
Schneider Electric
$1,765.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Product Or Component Type:
- circuit breaker
- Mounting Mode:
- I-Line bracket)
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Utilisation Category:
- category A
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Product Certifications:
- UL || CSA || NOM
- Ambient Air Temperature For Operation:
- -2-70 °C
- Breaking Capacity Code:
- D
- Trip Unit Name:
- MicroLogic 3.2 S
- Depth:
- 86 mm
- Mounting Support:
- bracket
- Quantity Per Set:
- 1
- Network Frequency:
- 50/60 Hz
- Sustainable Offer Status:
- Green Premium product
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Communication Interface:
- Modbus || Ethernet
- Mercury Free:
- Yes
- Width:
- 104 mm
- Protected Poles Description:
- 3t
- Height:
- 163 mm
- Continuous Current Rating:
- 0.8
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.2 S, LSI
- Mounting Height:
- 4.5 in
- Circularity Profile:
- ENVEOLI2206028EN
- Line Rated Current:
- 100-100 A
- Control Type:
- toggle
- Rohs Exemption Information:
- Yes
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Quality Labels:
- CE
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Environmental Disclosure:
- ENVPEP2206028EN
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Warranty:
- 18 months
- Pvc Free:
- Yes
- Device Application:
- distribution
- Ambient Air Temperature For Storage:
- -50-85 °C
- Product Name:
- PowerPact H
- Poles Description:
- 3P
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Eu Rohs Directive:
- Compliant with Exemptions
- Net Weight:
- 2.2 kg
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Color:
- Black
- Suitability For Isolation:
- yes IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Terminal Identifier:
- AL150HD
- Wire Stripping Length:
- 16 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Pollution Degree:
- 3 IEC 60947-1
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Electrical Connection:
- I-Line connection, line || lugs, load
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Phase Connection:
- ABC
- Circuit Breaker Application:
- HACR rated
- Range:
- PowerPact
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
