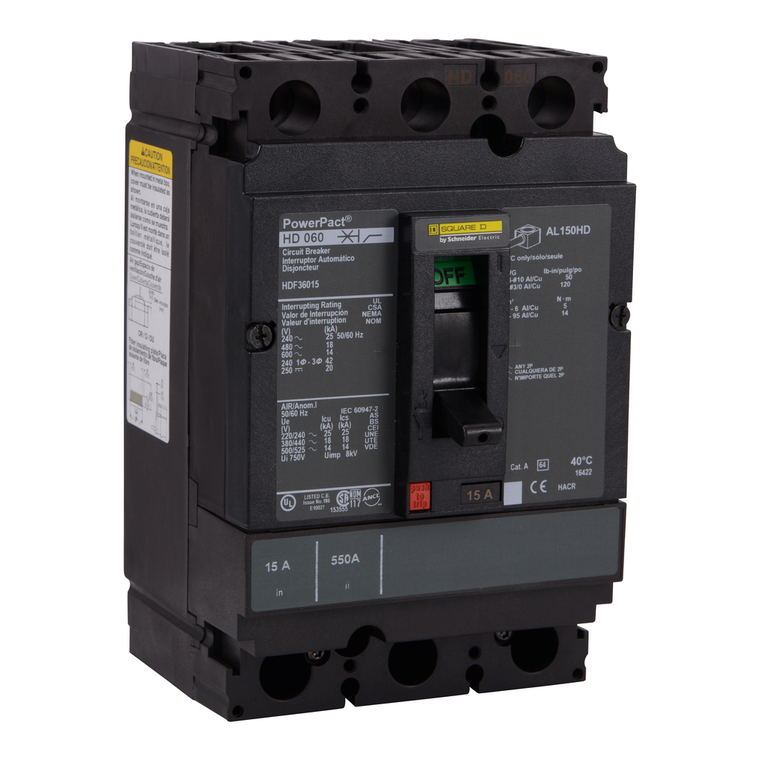

Schneider Electric HDF36015 Molded Case Circuit Breaker 600V 15A
Schneider Electric
$1,632.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric HDF36015 Molded Case Circuit Breaker 600V 15A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has a busbar connection. This PowerPacT H, 15A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Quality Labels:
- CE
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Storage:
- -50-85 °C
- Breaking Capacity Code:
- D
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Communication Interface:
- Modbus || Ethernet
- Wire Stripping Length:
- 16 mm
- Mounting Support:
- busbar
- Depth:
- 86 mm
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Product Or Component Type:
- circuit breaker
- Mercury Free:
- Yes
- Line Rated Current:
- 15-15 A
- Environmental Disclosure:
- ENVPEP2206027EN
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Device Application:
- distribution
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Continuous Current Rating:
- 0.8
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Trip Unit Technology:
- thermal-magnetic
- Poles Description:
- 3P
- Circuit Breaker Application:
- HACR rated
- Magnetic Hold Current:
- 350 A
- Terminal Identifier:
- AL150HD
- Control Type:
- toggle
- Ambient Air Temperature For Operation:
- -2-70 °C
- Range:
- PowerPact
- Pvc Free:
- Yes
- Mounting Mode:
- unit mount busbar)
- Color:
- Black
- Product Certifications:
- UL || CSA || NOM
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Suitability For Isolation:
- yes IEC 60947-2
- Net Weight:
- 2.2 kg
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Rohs Exemption Information:
- Yes
- Utilisation Category:
- category A
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Width:
- 104 mm
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Product Name:
- PowerPact H
- Quantity Per Set:
- 1
- Electrical Connection:
- busbar connection, line || busbar connection, load
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Height:
- 163 mm
- Network Frequency:
- 50/60 Hz
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Eu Rohs Directive:
- Compliant with Exemptions
- Protected Poles Description:
- 3t
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Magnetic Tripping Current:
- 750-750 A
- Pollution Degree:
- 3 IEC 60947-1
- Circularity Profile:
- ENVEOLI2206027EN
