Schneider Electric HGA260202 Molded Case Circuit Breaker 600V 20A
Schneider Electric

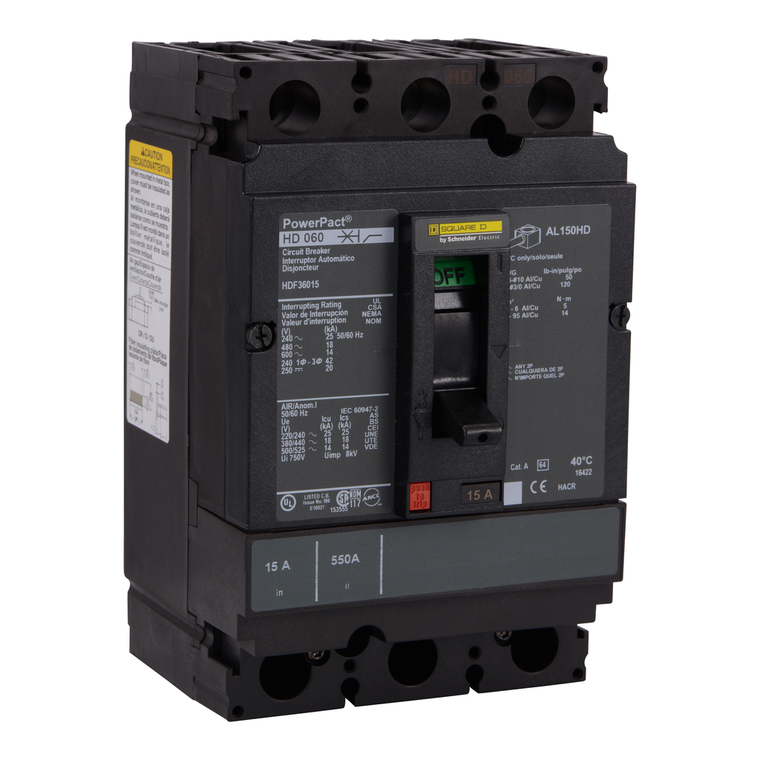

Schneider Electric HDF36020 Molded Case Circuit Breaker 600V 20A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has a busbar connection. This PowerPacT H, 20A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Height:
- 163 mm
- Color:
- Black
- Circuit Breaker Application:
- HACR rated
- Poles Description:
- 3P
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Sustainable Offer Status:
- Green Premium product
- Utilisation Category:
- category A
- Mounting Support:
- busbar
- Product Or Component Type:
- circuit breaker
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Suitability For Isolation:
- yes IEC 60947-2
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Mounting Mode:
- unit mount busbar)
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Depth:
- 86 mm
- Quality Labels:
- CE
- Quantity Per Set:
- 1
- Product Name:
- PowerPact H
- Network Frequency:
- 50/60 Hz
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Range:
- PowerPact
- Eu Rohs Directive:
- Compliant with Exemptions
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Product Certifications:
- UL || CSA || NOM
- Control Type:
- toggle
- Ambient Air Temperature For Operation:
- -2-70 °C
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Terminal Identifier:
- AL150HD
- Net Weight:
- 2.2 kg
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Wire Stripping Length:
- 16 mm
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Line Rated Current:
- 20-20 A
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Rohs Exemption Information:
- Yes
- Pollution Degree:
- 3 IEC 60947-1
- Protected Poles Description:
- 3t
- Breaking Capacity Code:
- D
- Continuous Current Rating:
- 0.8
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Environmental Disclosure:
- ENVPEP2206027EN
- Magnetic Hold Current:
- 350 A
- Communication Interface:
- Modbus || Ethernet
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Magnetic Tripping Current:
- 750-750 A
- Device Application:
- distribution
- Circularity Profile:
- ENVEOLI2206027EN
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Trip Unit Technology:
- thermal-magnetic
- Pvc Free:
- Yes
- Ambient Air Temperature For Storage:
- -50-85 °C
- Electrical Connection:
- busbar connection, line || busbar connection, load
- Width:
- 104 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
