Schneider Electric NHJF36030TW Molded Case Circuit Breaker 600V 30A
Schneider Electric
Schneider Electric HDL26030C Molded Case Circuit Breaker 600V 30A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

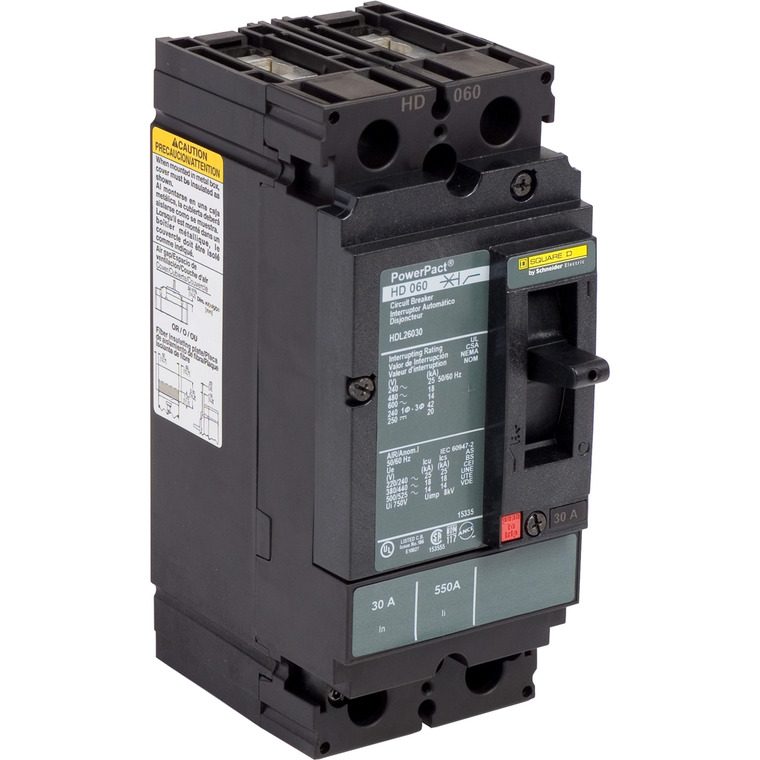

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 30A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Breaking Capacity Code:
- D
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Range:
- PowerPact
- Height:
- 163 mm
- Product Name:
- PowerPact H
- Circularity Profile:
- ENVEOLI2206027EN
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Eu Rohs Directive:
- Compliant with Exemptions
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Pvc Free:
- Yes
- Utilisation Category:
- category A
- Product Or Component Type:
- circuit breaker
- Color:
- Black
- Device Application:
- distribution
- Rohs Exemption Information:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Quantity Per Set:
- 1
- Wire Stripping Length:
- 16 mm
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Pollution Degree:
- 3 IEC 60947-1
- Line Rated Current:
- 30-30 A
- Trip Unit Technology:
- thermal-magnetic
- Network Frequency:
- 50/60 Hz
- Mounting Support:
- lug
- Continuous Current Rating:
- 1
- Terminal Identifier:
- AL150HD
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Suitability For Isolation:
- yes IEC 60947-2
- Environmental Disclosure:
- ENVPEP2206027EN
- Electrical Connection:
- lugs, line || lugs, load
- Ambient Air Temperature For Storage:
- -50-85 °C
- Product Certifications:
- UL || CSA || NOM
- Communication Interface:
- Modbus || Ethernet
- Protected Poles Description:
- 2t
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mounting Mode:
- unit mount lug)
- Sustainable Offer Status:
- Green Premium product
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Control Type:
- toggle
- Magnetic Hold Current:
- 350 A
- Width:
- 104 mm
- Depth:
- 86 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Magnetic Tripping Current:
- 750-750 A
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Net Weight:
- 2.2 kg
- Ambient Air Temperature For Operation:
- -2-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Mercury Free:
- Yes
- Quality Labels:
- CE
- Poles Description:
- 2P
- Warranty:
- 18 months
- Circuit Breaker Application:
- HACR rated
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
