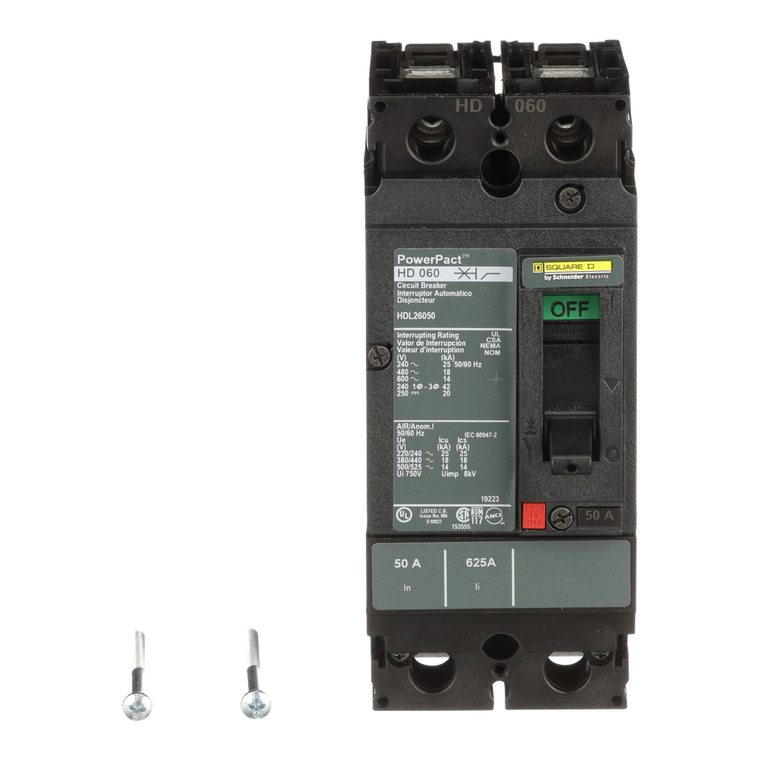

Schneider Electric HDL26050 Molded Case Circuit Breaker 600V 50A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 50A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Pollution Degree:
- 3 IEC 60947-1
- Electrical Connection:
- lugs, line || lugs, load
- Product Or Component Type:
- circuit breaker
- Width:
- 104 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Magnetic Tripping Current:
- 850-850 A
- Ambient Air Temperature For Operation:
- -2-70 °C
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Ambient Air Temperature For Storage:
- -50-85 °C
- Protected Poles Description:
- 2t
- Product Name:
- PowerPact H
- Depth:
- 86 mm
- Color:
- Black
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Utilisation Category:
- category A
- Warranty:
- 18 months
- Circularity Profile:
- ENVEOLI2206027EN
- Suitability For Isolation:
- yes IEC 60947-2
- Continuous Current Rating:
- 0.8
- Mercury Free:
- Yes
- Terminal Identifier:
- AL150HD
- Breaking Capacity Code:
- D
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Range:
- PowerPact
- Poles Description:
- 2P
- Mounting Support:
- lug
- Pvc Free:
- Yes
- Net Weight:
- 2.2 kg
- Magnetic Hold Current:
- 400 A
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Device Application:
- distribution
- Wire Stripping Length:
- 16 mm
- Rohs Exemption Information:
- Yes
- Circuit Breaker Application:
- HACR rated
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Network Frequency:
- 50/60 Hz
- Control Type:
- toggle
- Communication Interface:
- Modbus || Ethernet
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP2206027EN
- Product Certifications:
- UL || CSA || NOM
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Height:
- 163 mm
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Quality Labels:
- CE
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Mounting Mode:
- unit mount lug)
- Trip Unit Technology:
- thermal-magnetic
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Line Rated Current:
- 50-50 A
- Quantity Per Set:
- 1
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
