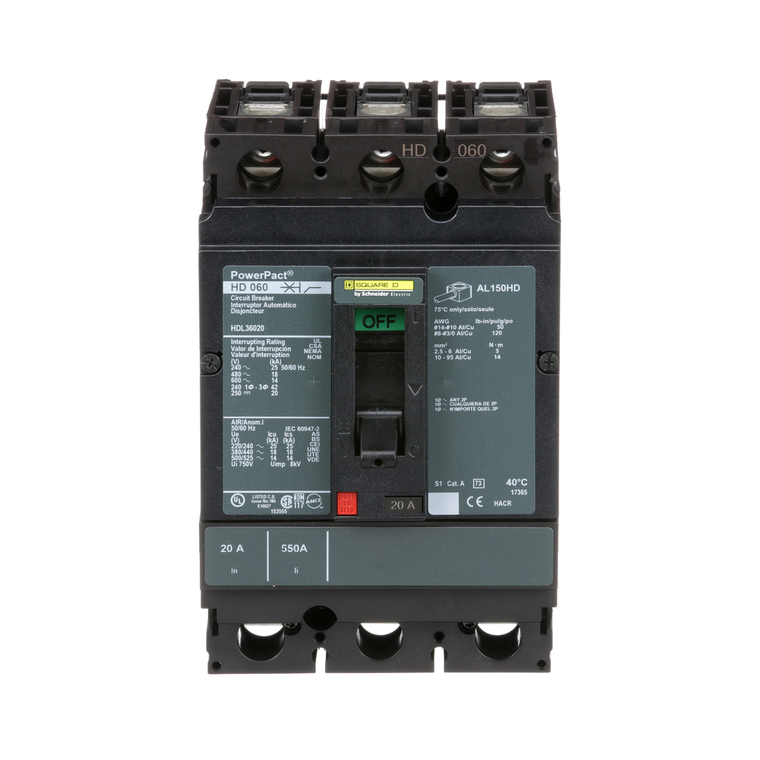

Schneider Electric HDL36020 Molded Case Circuit Breaker 600V 20A

Schneider Electric HDL36020 Molded Case Circuit Breaker 600V 20A

Schneider Electric
SKU:
HDL36020
|
UPC:
785901706694
Availability:
Contact us to confirm availability and lead times.
$1,088.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 20A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Protected Poles Description:
3t
Line Rated Current:
20-20 A
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Circuit Breaker Application:
HACR rated
Breaking Capacity Code:
D
Environmental Disclosure:
ENVPEP2206027EN
Height:
163 mm
Network Frequency:
50/60 Hz
Utilisation Category:
category A
Magnetic Hold Current:
350 A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Electrical Connection:
lugs, line || lugs, load
Pollution Degree:
3 IEC 60947-1
Mounting Mode:
unit mount lug)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
circuit breaker
Wire Stripping Length:
16 mm
Trip Unit Technology:
thermal-magnetic
Terminal Identifier:
AL150HD
Mercury Free:
Yes
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Magnetic Tripping Current:
750-750 A
Eu Rohs Directive:
Compliant with Exemptions
Poles Description:
3P
Communication Interface:
Modbus || Ethernet
Depth:
86 mm
Color:
Black
Product Certifications:
UL || CSA || NOM
Control Type:
toggle
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Circularity Profile:
ENVEOLI2206027EN
Device Application:
distribution
Quality Labels:
CE
Range:
PowerPact
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Suitability For Isolation:
yes IEC 60947-2
Net Weight:
2.2 kg
Rohs Exemption Information:
Yes
Mounting Support:
lug
Ip Degree Of Protection:
front cover IP40 IEC 60529
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Continuous Current Rating:
0.8
Local Signalling:
switched off (OFF) 1 trip indicator green)
Pvc Free:
Yes
Warranty:
18 months
Ambient Air Temperature For Operation:
-2-70 °C
Ambient Air Temperature For Storage:
-50-85 °C
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Quantity Per Set:
1
Width:
104 mm
Product Name:
PowerPact H
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
