Schneider Electric HDL36035 Molded Case Circuit Breaker 600V 35A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 35A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Quantity Per Set:
- 1
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Mounting Mode:
- unit mount lug)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Magnetic Hold Current:
- 400 A
- Electrical Connection:
- lugs, line || lugs, load
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Product Name:
- PowerPact H
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Warranty:
- 18 months
- Color:
- Black
- Ambient Air Temperature For Operation:
- -2-70 °C
- Device Application:
- distribution
- Continuous Current Rating:
- 0.8
- Poles Description:
- 3P
- Protected Poles Description:
- 3t
- Product Certifications:
- UL || CSA || NOM
- Suitability For Isolation:
- yes IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Pvc Free:
- Yes
- Communication Interface:
- Modbus || Ethernet
- Mercury Free:
- Yes
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Magnetic Tripping Current:
- 850-850 A
- Wire Stripping Length:
- 16 mm
- Circularity Profile:
- ENVEOLI2206027EN
- Quality Labels:
- CE
- Circuit Breaker Application:
- HACR rated
- Mounting Support:
- lug
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Ambient Air Temperature For Storage:
- -50-85 °C
- Utilisation Category:
- category A
- Product Or Component Type:
- circuit breaker
- Breaking Capacity Code:
- D
- Trip Unit Technology:
- thermal-magnetic
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Terminal Identifier:
- AL150HD
- Range:
- PowerPact
- Rohs Exemption Information:
- Yes
- Net Weight:
- 2.2 kg
- Line Rated Current:
- 35-35 A
- Environmental Disclosure:
- ENVPEP2206027EN
- Depth:
- 86 mm
- Width:
- 104 mm
- Control Type:
- toggle
- Pollution Degree:
- 3 IEC 60947-1
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Eu Rohs Directive:
- Compliant with Exemptions
- Network Frequency:
- 50/60 Hz
- Height:
- 163 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
Related Products
-
-

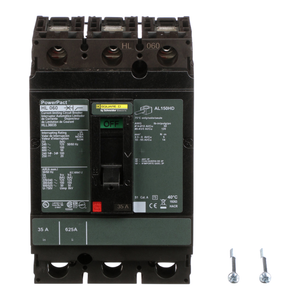

Schneider Electric HLL36035 Molded Case Circuit Breaker 600V 35A
