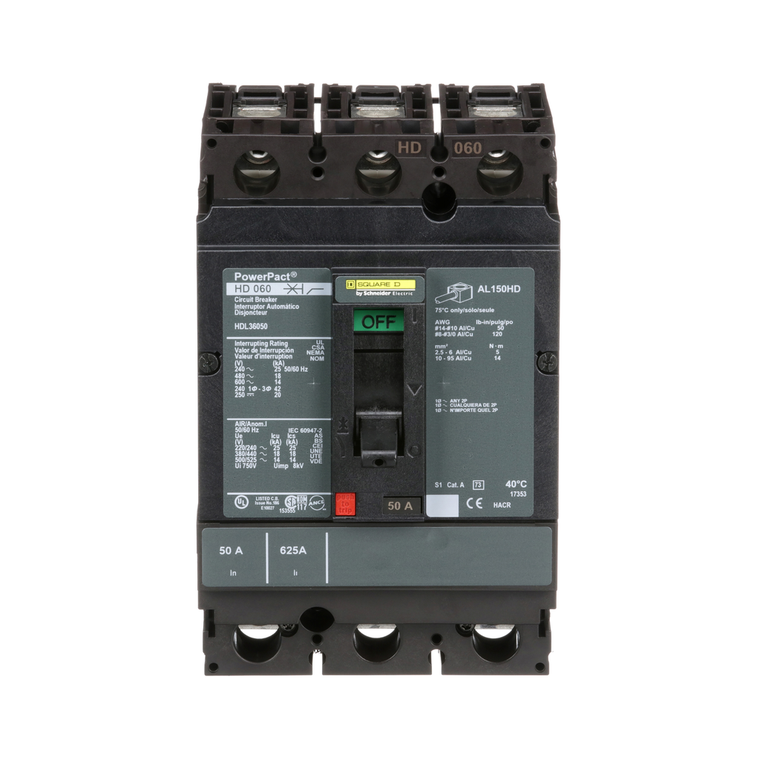

Schneider Electric HDL36050 Molded Case Circuit Breaker 600V 50A
Schneider Electric
$1,088.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 50A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Pollution Degree:
- 3 IEC 60947-1
- Wire Stripping Length:
- 16 mm
- Terminal Identifier:
- AL150HD
- Suitability For Isolation:
- yes IEC 60947-2
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Color:
- Black
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Certifications:
- UL || CSA || NOM
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Device Application:
- distribution
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Line Rated Current:
- 50-50 A
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Circularity Profile:
- ENVEOLI2206027EN
- Trip Unit Technology:
- thermal-magnetic
- Network Frequency:
- 50/60 Hz
- Product Or Component Type:
- circuit breaker
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Protected Poles Description:
- 3t
- Ambient Air Temperature For Storage:
- -50-85 °C
- Sustainable Offer Status:
- Green Premium product
- Control Type:
- toggle
- Magnetic Tripping Current:
- 850-850 A
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Electrical Connection:
- lugs, line || lugs, load
- Rohs Exemption Information:
- Yes
- Range:
- PowerPact
- Utilisation Category:
- category A
- Quantity Per Set:
- 1
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Mounting Mode:
- unit mount lug)
- Circuit Breaker Application:
- HACR rated
- Mercury Free:
- Yes
- Width:
- 104 mm
- Mounting Support:
- lug
- Depth:
- 86 mm
- Quality Labels:
- CE
- Eu Rohs Directive:
- Compliant with Exemptions
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Ambient Air Temperature For Operation:
- -2-70 °C
- Height:
- 163 mm
- Warranty:
- 18 months
- Continuous Current Rating:
- 0.8
- Environmental Disclosure:
- ENVPEP2206027EN
- Communication Interface:
- Modbus || Ethernet
- Magnetic Hold Current:
- 400 A
- Breaking Capacity Code:
- D
- Pvc Free:
- Yes
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Net Weight:
- 2.2 kg
- Poles Description:
- 3P
- Product Name:
- PowerPact H
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
