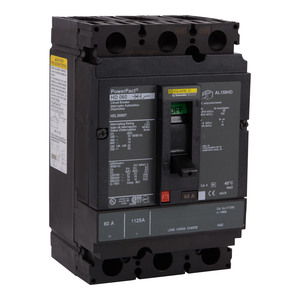

Schneider Electric HDL36060CU31X Molded Case Circuit Breaker 600V 60A
Schneider Electric
Schneider Electric HDL36060C Molded Case Circuit Breaker 600V 60A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Wire Stripping Length:
- 16 mm
- Rohs Exemption Information:
- Yes
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Product Certifications:
- UL || CSA || NOM
- Ambient Air Temperature For Storage:
- -50-85 °C
- Line Rated Current:
- 60-60 A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Product Or Component Type:
- circuit breaker
- Suitability For Isolation:
- yes IEC 60947-2
- Mounting Support:
- lug
- Terminal Identifier:
- AL150HD
- Circuit Breaker Application:
- HACR rated
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Poles Description:
- 3P
- Pvc Free:
- Yes
- Depth:
- 86 mm
- Net Weight:
- 2.2 kg
- Width:
- 104 mm
- Warranty:
- 18 months
- Sustainable Offer Status:
- Green Premium product
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Product Name:
- PowerPact H
- Height:
- 163 mm
- Network Frequency:
- 50/60 Hz
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Trip Unit Technology:
- thermal-magnetic
- Eu Rohs Directive:
- Compliant with Exemptions
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Mounting Mode:
- unit mount lug)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Magnetic Hold Current:
- 800 A
- Communication Interface:
- Modbus || Ethernet
- Protected Poles Description:
- 3t
- Quantity Per Set:
- 1
- Continuous Current Rating:
- 1
- Environmental Disclosure:
- ENVPEP2206027EN
- Color:
- Black
- Electrical Connection:
- lugs, line || lugs, load
- Ambient Air Temperature For Operation:
- -2-70 °C
- Magnetic Tripping Current:
- 1450-1450 A
- Pollution Degree:
- 3 IEC 60947-1
- Quality Labels:
- CE
- Utilisation Category:
- category A
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Breaking Capacity Code:
- D
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Circularity Profile:
- ENVEOLI2206027EN
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Control Type:
- toggle
- Range:
- PowerPact
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Mercury Free:
- Yes
- Device Application:
- distribution
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
