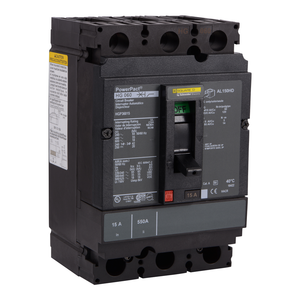

Schneider Electric HDL36060T Molded Case Circuit Breaker 600V 60A

Schneider Electric HDL36060T Molded Case Circuit Breaker 600V 60A

Schneider Electric
SKU:
HDL36060T
|
UPC:
7.85901E+11
Availability:
Contact us to confirm availability and lead times.
$1,632.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit allows field-interchangeable trip units. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Poles Description:
3P
Magnetic Hold Current:
800 A
Ambient Air Temperature For Storage:
-50-85 °C
Line Rated Current:
60-60 A
Electrical Connection:
lugs, line || lugs, load
Wire Stripping Length:
16 mm
Installed Device:
trip unit field installable
Quality Labels:
CE
Warranty:
18 months
Depth:
86 mm
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Pollution Degree:
3 IEC 60947-1
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Breaking Capacity Code:
D
Eu Rohs Directive:
Compliant with Exemptions
Communication Interface:
Modbus || Ethernet
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Mounting Support:
lug
Rohs Exemption Information:
Yes
Trip Unit Technology:
thermal-magnetic
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Protected Poles Description:
3t
Net Weight:
2.2 kg
Quantity Per Set:
1
Control Type:
toggle
Environmental Disclosure:
ENVPEP2206027EN
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Circuit Breaker Application:
HACR rated
Circularity Profile:
ENVEOLI2206027EN
Range:
PowerPact
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Product Or Component Type:
circuit breaker
Ambient Air Temperature For Operation:
-2-70 °C
Local Signalling:
switched off (OFF) 1 trip indicator green)
Height:
163 mm
Color:
Black
Terminal Identifier:
AL150HD
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Sustainable Offer Status:
Green Premium product
Pvc Free:
Yes
Device Application:
distribution
Utilisation Category:
category A
Suitability For Isolation:
yes IEC 60947-2
Magnetic Tripping Current:
1450-1450 A
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Mounting Mode:
unit mount lug)
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Ip Degree Of Protection:
front cover IP40 IEC 60529
Network Frequency:
50/60 Hz
Continuous Current Rating:
0.8
Product Certifications:
UL || CSA || NOM
Product Name:
PowerPact H
Width:
104 mm
Mercury Free:
Yes
