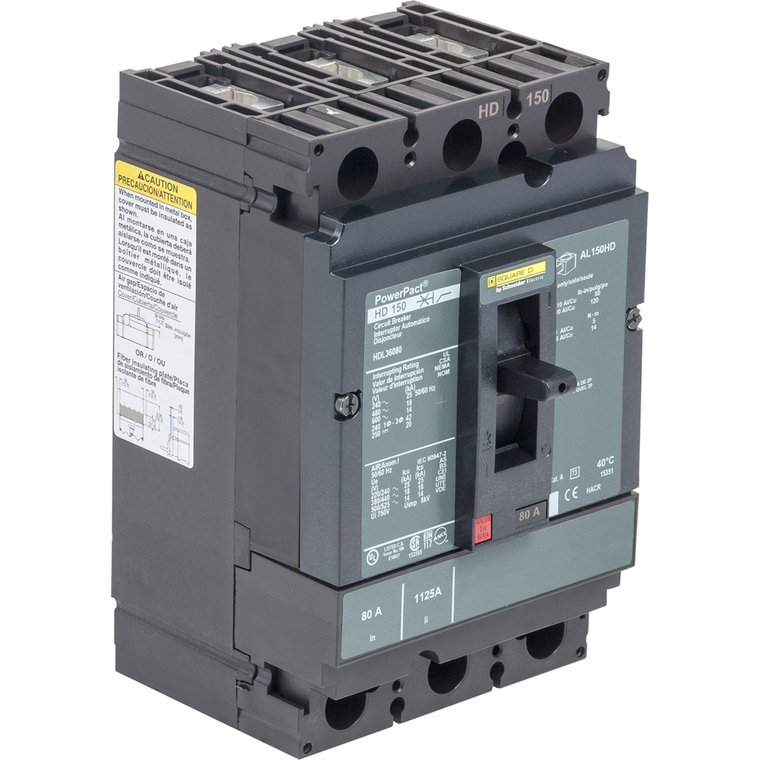

Schneider Electric NHGF36080TW Molded Case Circuit Breaker 600V 80A
Schneider Electric
Schneider Electric HDL36080C Molded Case Circuit Breaker 600V 80A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 80A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Magnetic Hold Current:
- 800 A
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Color:
- Black
- Pollution Degree:
- 3 IEC 60947-1
- Sustainable Offer Status:
- Green Premium product
- Suitability For Isolation:
- yes IEC 60947-2
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Ambient Air Temperature For Operation:
- -2-70 °C
- Product Certifications:
- UL || CSA || NOM
- Eu Rohs Directive:
- Compliant with Exemptions
- Poles Description:
- 3P
- Circuit Breaker Application:
- HACR rated
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Quantity Per Set:
- 1
- Line Rated Current:
- 80-80 A
- Communication Interface:
- Modbus || Ethernet
- Wire Stripping Length:
- 16 mm
- Trip Unit Technology:
- thermal-magnetic
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Control Type:
- toggle
- Breaking Capacity Code:
- D
- Product Or Component Type:
- circuit breaker
- Warranty:
- 18 months
- Circularity Profile:
- ENVEOLI2206027EN
- Rohs Exemption Information:
- Yes
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Product Name:
- PowerPact H
- Electrical Connection:
- lugs, line || lugs, load
- Height:
- 163 mm
- Mounting Mode:
- unit mount lug)
- Mercury Free:
- Yes
- Magnetic Tripping Current:
- 1450-1450 A
- Network Frequency:
- 50/60 Hz
- Environmental Disclosure:
- ENVPEP2206027EN
- Quality Labels:
- CE
- Continuous Current Rating:
- 1
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Range:
- PowerPact
- Ambient Air Temperature For Storage:
- -50-85 °C
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Terminal Identifier:
- AL150HD
- Utilisation Category:
- category A
- Device Application:
- distribution
- Net Weight:
- 2.2 kg
- Width:
- 104 mm
- Depth:
- 86 mm
- Pvc Free:
- Yes
- Protected Poles Description:
- 3t
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Mounting Support:
- lug
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
