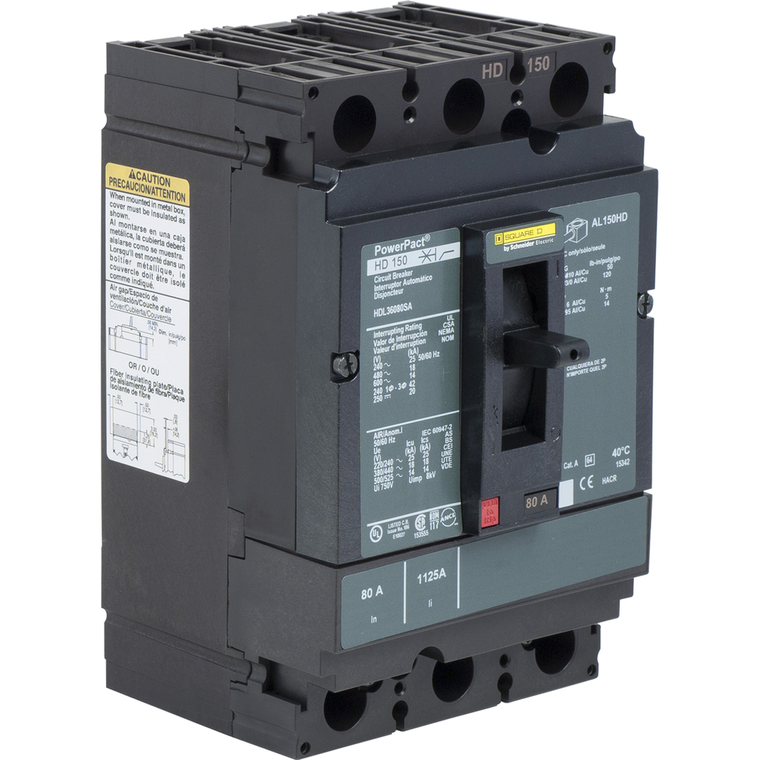

Schneider Electric HDL36100CU33X Molded Case Circuit Breaker 600V 100A

Schneider Electric HDL36100CU33X Molded Case Circuit Breaker 600V 100A

Schneider Electric
SKU:
HDL36100CU33X
|
UPC:
7.85902E+11
Availability:
Factory stock
$1,793.92
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Eu Rohs Directive:
Compliant with Exemptions
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Device Application:
distribution
Product Certifications:
UL || CSA || NOM
Ip Degree Of Protection:
front cover IP40 IEC 60529
Quality Labels:
CE
Wire Stripping Length:
16 mm
Mounting Mode:
unit mount lug)
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Storage:
-50-85 °C
Pvc Free:
Yes
Circularity Profile:
ENVEOLI2206028EN
Breaking Capacity Code:
D
Product Or Component Type:
circuit breaker
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Control Type:
toggle
Mercury Free:
Yes
Color:
Black
Network Frequency:
50/60 Hz
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Quantity Per Set:
1
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Poles Description:
3P
Product Name:
PowerPact H
Warranty:
18 months
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Line Rated Current:
100-100 A
Height:
163 mm
Protected Poles Description:
3t
Net Weight:
2.2 kg
Rohs Exemption Information:
Yes
Pollution Degree:
3 IEC 60947-1
Communication Interface:
Modbus || Ethernet
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Environmental Disclosure:
ENVPEP2206028EN
Trip Unit Technology:
electronic, standard, MicroLogic 3.2 S, LSI
Circuit Breaker Application:
HACR rated
Ambient Air Temperature For Operation:
-2-70 °C
Mounting Support:
lug
Continuous Current Rating:
1
Width:
104 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Depth:
86 mm
Suitability For Isolation:
yes IEC 60947-2
Utilisation Category:
category A
Electrical Connection:
lugs, line || lugs, load
Terminal Identifier:
AL150HD
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Range:
PowerPact
Trip Unit Name:
MicroLogic 3.2 S
