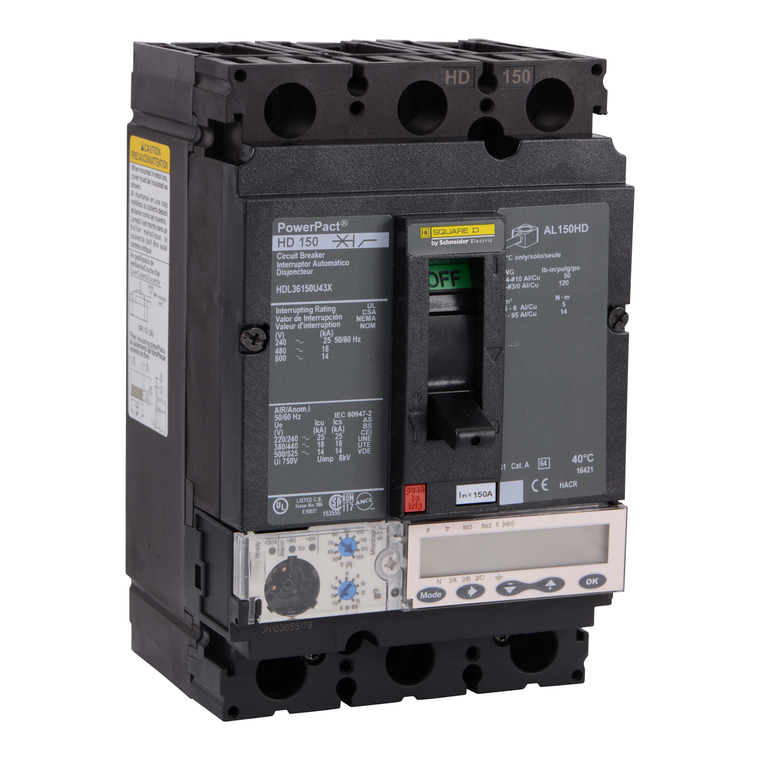

Schneider Electric HDL36150CU44X Molded Case Circuit Breaker 600V 150A
Schneider Electric
$4,724.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Ammeter with a 6.2A trip unit and an LSIG function with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Network Frequency:
- 50/60 Hz
- Quantity Per Set:
- 1
- Warranty:
- 18 months
- Device Application:
- distribution
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Line Rated Current:
- 150-150 A
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Continuous Current Rating:
- 1
- Ambient Air Temperature For Operation:
- -2-70 °C
- Breaking Capacity Code:
- D
- Pollution Degree:
- 3 IEC 60947-1
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Circuit Breaker Application:
- HACR rated
- Terminal Identifier:
- AL150HD
- Width:
- 104 mm
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Mercury Free:
- Yes
- Mounting Mode:
- unit mount lug)
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Electrical Connection:
- lugs, line || lugs, load
- Eu Rohs Directive:
- Compliant with Exemptions
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Suitability For Isolation:
- yes IEC 60947-2
- Poles Description:
- 3P
- Utilisation Category:
- category A
- Trip Unit Name:
- MicroLogic 6.2 A
- Rohs Exemption Information:
- Yes
- Wire Stripping Length:
- 16 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Product Name:
- PowerPact H
- Pvc Free:
- Yes
- Communication Interface:
- Modbus || Ethernet
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Depth:
- 86 mm
- Range:
- PowerPact
- Environmental Disclosure:
- ENVPEP2206028EN
- Trip Unit Technology:
- electronic, ammeter, MicroLogic 6.2 A, LSIG
- Circularity Profile:
- ENVEOLI2206028EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Height:
- 163 mm
- Product Certifications:
- UL || CSA || NOM
- Net Weight:
- 2.2 kg
- Product Or Component Type:
- circuit breaker
- Color:
- Black
- Protected Poles Description:
- 3t
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Mounting Support:
- lug
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Ambient Air Temperature For Storage:
- -50-85 °C
- Quality Labels:
- CE
- Control Type:
- toggle
