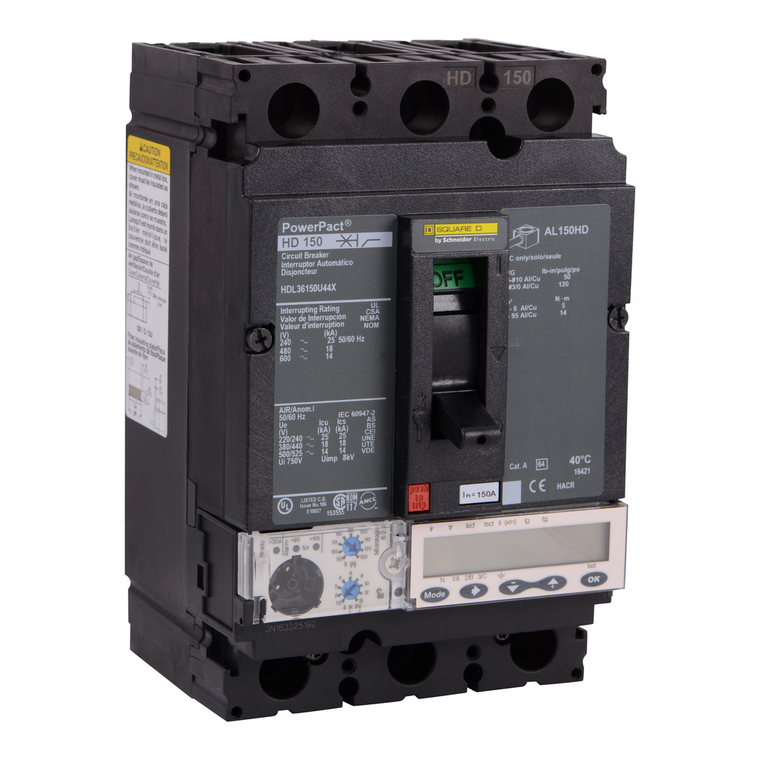

Schneider Electric HDL36150U44X Molded Case Circuit Breaker 600V 150A

Schneider Electric HDL36150U44X Molded Case Circuit Breaker 600V 150A

Schneider Electric
SKU:
HDL36150U44X
|
UPC:
785901085478
Availability:
Contact us to confirm availability and lead times.
$4,263.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Ammeter with a 6.2A trip unit and an LSIG function with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Continuous Current Rating:
0.8
Circularity Profile:
ENVEOLI2206028EN
Terminal Identifier:
AL150HD
Ambient Air Temperature For Storage:
-50-85 °C
Net Weight:
2.2 kg
Eu Rohs Directive:
Compliant with Exemptions
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Height:
163 mm
Protected Poles Description:
3t
Ip Degree Of Protection:
front cover IP40 IEC 60529
Suitability For Isolation:
yes IEC 60947-2
Breaking Capacity Code:
D
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Utilisation Category:
category A
Width:
104 mm
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Quality Labels:
CE
Pvc Free:
Yes
Warranty:
18 months
Product Or Component Type:
circuit breaker
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Wire Stripping Length:
16 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Range:
PowerPact
Sustainable Offer Status:
Green Premium product
Pollution Degree:
3 IEC 60947-1
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Mounting Mode:
unit mount lug)
Product Certifications:
UL || CSA || NOM
Circuit Breaker Application:
HACR rated
Network Frequency:
50/60 Hz
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Product Name:
PowerPact H
Environmental Disclosure:
ENVPEP2206028EN
Depth:
86 mm
Color:
Black
Rohs Exemption Information:
Yes
Quantity Per Set:
1
Trip Unit Technology:
electronic, ammeter, MicroLogic 6.2 A, LSIG
Mercury Free:
Yes
Electrical Connection:
lugs, line || lugs, load
Poles Description:
3P
Mounting Support:
lug
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Line Rated Current:
150-150 A
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Control Type:
toggle
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Communication Interface:
Modbus || Ethernet
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Ambient Air Temperature For Operation:
-2-70 °C
Trip Unit Name:
MicroLogic 6.2 A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Device Application:
distribution
