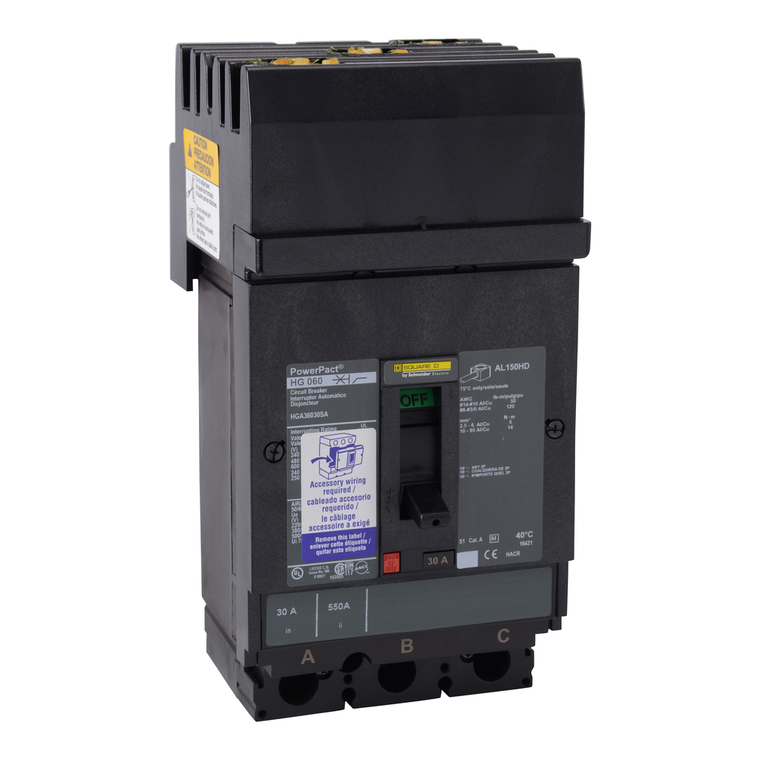

Schneider Electric HGA36025 Molded Case Circuit Breaker 600V 25A
Schneider Electric
$1,575.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 25A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Poles Description:
- 3P
- Wire Stripping Length:
- 16 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Circularity Profile:
- ENVEOLI2206027EN
- Range:
- PowerPact
- Protected Poles Description:
- 3t
- Terminal Identifier:
- AL150HD
- Warranty:
- 18 months
- Mercury Free:
- Yes
- Ambient Air Temperature For Storage:
- -50-85 °C
- Width:
- 104 mm
- Height:
- 163 mm
- Suitability For Isolation:
- yes IEC 60947-2
- Utilisation Category:
- category A
- Depth:
- 86 mm
- Communication Interface:
- Modbus || Ethernet
- Net Weight:
- 2.2 kg
- Quality Labels:
- CE
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Color:
- Black
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Product Or Component Type:
- circuit breaker
- Circuit Breaker Application:
- HACR rated
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Line Rated Current:
- 25-25 A
- Network Frequency:
- 50/60 Hz
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Pvc Free:
- Yes
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Trip Unit Technology:
- thermal-magnetic
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Rohs Exemption Information:
- Yes
- Magnetic Tripping Current:
- 750-750 A
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Continuous Current Rating:
- 0.8
- Eu Rohs Directive:
- Compliant with Exemptions
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Environmental Disclosure:
- ENVPEP2206027EN
- Ambient Air Temperature For Operation:
- -2-70 °C
- Phase Connection:
- ABC
- Product Certifications:
- UL || CSA || NOM
- Quantity Per Set:
- 1
- Product Name:
- PowerPact H
- Device Application:
- distribution
- Mounting Support:
- bracket
- Mounting Mode:
- I-Line bracket)
- Electrical Connection:
- I-Line connection, line || lugs, load
- Mounting Height:
- 4.5 in
- Control Type:
- toggle
- Breaking Capacity Code:
- G
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Magnetic Hold Current:
- 350 A
- Pollution Degree:
- 3 IEC 60947-1
