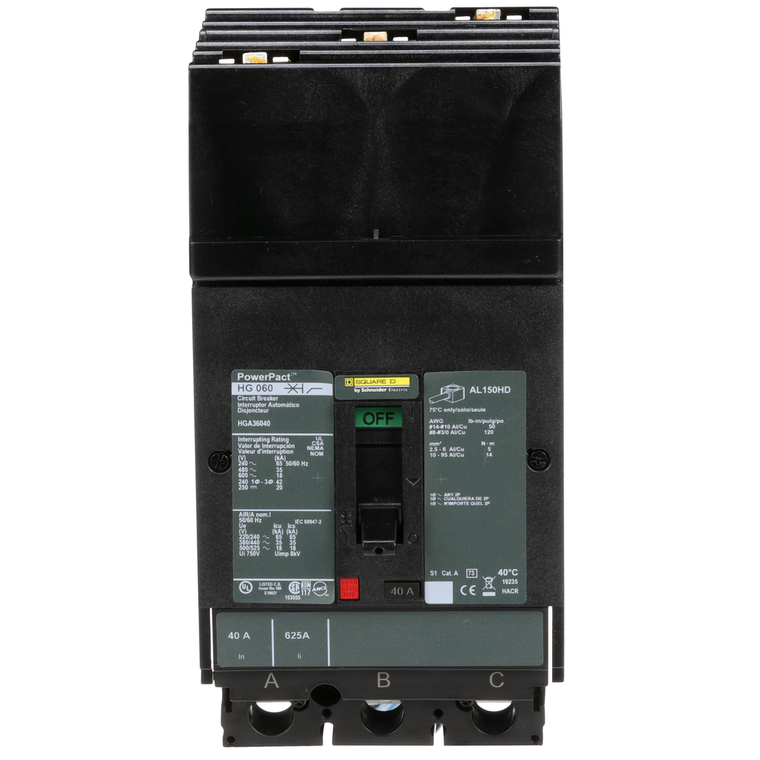

Schneider Electric HGA36040 Molded Case Circuit Breaker 600V 40A

Schneider Electric HGA36040 Molded Case Circuit Breaker 600V 40A

Schneider Electric
SKU:
HGA36040
|
UPC:
785901601371
Availability:
Factory stock
$1,003.83
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 40A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Mounting Height:
4.5 in
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Eu Rohs Directive:
Compliant with Exemptions
Ambient Air Temperature For Storage:
-50-85 °C
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Pvc Free:
Yes
Environmental Disclosure:
ENVPEP2206027EN
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Net Weight:
2.2 kg
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Ip Degree Of Protection:
front cover IP40 IEC 60529
Protected Poles Description:
3t
Phase Connection:
ABC
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Device Application:
distribution
Product Or Component Type:
circuit breaker
Quality Labels:
CE
Breaking Capacity Code:
G
Wire Stripping Length:
16 mm
Color:
Black
Trip Unit Technology:
thermal-magnetic
Continuous Current Rating:
0.8
Control Type:
toggle
Terminal Identifier:
AL150HD
Communication Interface:
Modbus || Ethernet
Pollution Degree:
3 IEC 60947-1
Range:
PowerPact
Network Frequency:
50/60 Hz
Warranty:
18 months
Magnetic Hold Current:
400 A
Width:
104 mm
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Product Name:
PowerPact H
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Product Certifications:
UL || CSA || NOM
Local Signalling:
switched off (OFF) 1 trip indicator green)
Poles Description:
3P
Sustainable Offer Status:
Green Premium product
Quantity Per Set:
1
Line Rated Current:
40-40 A
Mounting Support:
bracket
Mounting Mode:
I-Line bracket)
Ambient Air Temperature For Operation:
-2-70 °C
Depth:
86 mm
Circuit Breaker Application:
HACR rated
Circularity Profile:
ENVEOLI2206027EN
Mercury Free:
Yes
Electrical Connection:
I-Line connection, line || lugs, load
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Magnetic Tripping Current:
850-850 A
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Suitability For Isolation:
yes IEC 60947-2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Utilisation Category:
category A
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Height:
163 mm
