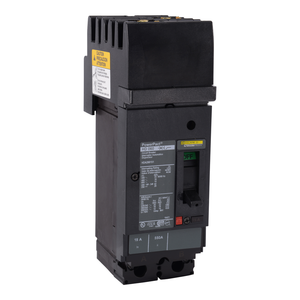

Schneider Electric HGF36060 Molded Case Circuit Breaker 600V 60A
Schneider Electric
$1,493.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric HGF36060 Molded Case Circuit Breaker 600V 60A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has a busbar connection. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Product Or Component Type:
- circuit breaker
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Mercury Free:
- Yes
- Terminal Identifier:
- AL150HD
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Mounting Support:
- busbar
- Environmental Disclosure:
- ENVPEP2206027EN
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Communication Interface:
- Modbus || Ethernet
- Ambient Air Temperature For Operation:
- -2-70 °C
- Protected Poles Description:
- 3t
- Pollution Degree:
- 3 IEC 60947-1
- Electrical Connection:
- busbar connection, line || busbar connection, load
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Wire Stripping Length:
- 16 mm
- Circuit Breaker Application:
- HACR rated
- Poles Description:
- 3P
- Mounting Mode:
- unit mount busbar)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Utilisation Category:
- category A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Network Frequency:
- 50/60 Hz
- Rohs Exemption Information:
- Yes
- Magnetic Tripping Current:
- 1450-1450 A
- Product Certifications:
- UL || CSA || NOM
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Quality Labels:
- CE
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Suitability For Isolation:
- yes IEC 60947-2
- Circularity Profile:
- ENVEOLI2206027EN
- Trip Unit Technology:
- thermal-magnetic
- Height:
- 163 mm
- Product Name:
- PowerPact H
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Range:
- PowerPact
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Device Application:
- distribution
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Net Weight:
- 2.2 kg
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive:
- Compliant with Exemptions
- Pvc Free:
- Yes
- Control Type:
- toggle
- Depth:
- 86 mm
- Magnetic Hold Current:
- 800 A
- Breaking Capacity Code:
- G
- Continuous Current Rating:
- 0.8
- Line Rated Current:
- 60-60 A
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Width:
- 104 mm
- Sustainable Offer Status:
- Green Premium product
- Color:
- Black
- Ambient Air Temperature For Storage:
- -50-85 °C
- Warranty:
- 18 months
- Quantity Per Set:
- 1
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
