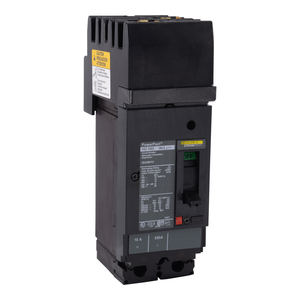

Schneider Electric HGF36110 Molded Case Circuit Breaker 600V 110A

Schneider Electric HGF36110 Molded Case Circuit Breaker 600V 110A

Schneider Electric
SKU:
HGF36110
|
UPC:
785901697527
Availability:
Contact us to confirm availability and lead times.
$5,398.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has a busbar connection. This PowerPacT H, 110A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Quantity Per Set:
1
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Width:
104 mm
Height:
163 mm
Suitability For Isolation:
yes IEC 60947-2
Control Type:
toggle
Continuous Current Rating:
0.8
Mounting Support:
busbar
Poles Description:
3P
Range:
PowerPact
Mounting Mode:
unit mount busbar)
Magnetic Tripping Current:
1700-1700 A
Ip Degree Of Protection:
front cover IP40 IEC 60529
Pvc Free:
Yes
Protected Poles Description:
3t
Terminal Identifier:
AL150HD
Product Or Component Type:
circuit breaker
Environmental Disclosure:
ENVPEP2206027EN
Communication Interface:
Modbus || Ethernet
Local Signalling:
switched off (OFF) 1 trip indicator green)
Sustainable Offer Status:
Green Premium product
Warranty:
18 months
Depth:
86 mm
Trip Unit Technology:
thermal-magnetic
Wire Stripping Length:
16 mm
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Network Frequency:
50/60 Hz
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Mercury Free:
Yes
Breaking Capacity Code:
G
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Certifications:
UL || CSA || NOM
Circuit Breaker Application:
HACR rated
Line Rated Current:
110-110 A
Color:
Black
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Pollution Degree:
3 IEC 60947-1
Quality Labels:
CE
Circularity Profile:
ENVEOLI2206027EN
Utilisation Category:
category A
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Device Application:
distribution
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Net Weight:
2.2 kg
Product Name:
PowerPact H
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Ambient Air Temperature For Operation:
-2-70 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage:
-50-85 °C
Magnetic Hold Current:
900 A
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Electrical Connection:
busbar connection, line || busbar connection, load
Eu Rohs Directive:
Compliant with Exemptions
Rohs Exemption Information:
Yes
