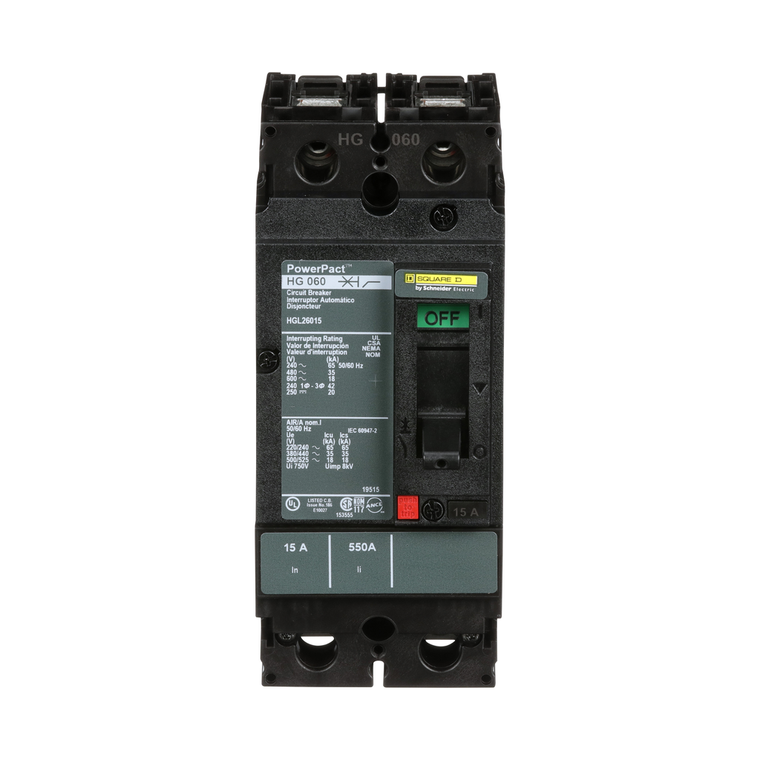

Schneider Electric HGL26015 Molded Case Circuit Breaker 600V 15A

Schneider Electric HGL26015 Molded Case Circuit Breaker 600V 15A

Schneider Electric
SKU:
HGL26015
|
UPC:
785901433750
Availability:
Factory stock
$808.79
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 15A, 2 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Breaking Capacity Code:
G
Mercury Free:
Yes
Warranty:
18 months
Magnetic Hold Current:
350 A
Ambient Air Temperature For Storage:
-50-85 °C
Trip Unit Technology:
thermal-magnetic
Rohs Exemption Information:
Yes
Circuit Breaker Application:
HACR rated
Product Name:
PowerPact H
Magnetic Tripping Current:
750-750 A
Ip Degree Of Protection:
front cover IP40 IEC 60529
Network Frequency:
50/60 Hz
Quality Labels:
CE
Width:
104 mm
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Product Certifications:
UL || CSA || NOM
Circularity Profile:
ENVEOLI2206027EN
Eu Rohs Directive:
Compliant with Exemptions
Net Weight:
2.2 kg
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Sustainable Offer Status:
Green Premium product
Suitability For Isolation:
yes IEC 60947-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Mounting Mode:
unit mount lug)
Utilisation Category:
category A
Poles Description:
2P
Protected Poles Description:
2t
Continuous Current Rating:
0.8
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Color:
Black
Depth:
86 mm
Pollution Degree:
3 IEC 60947-1
Wire Stripping Length:
16 mm
Product Or Component Type:
circuit breaker
Quantity Per Set:
1
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Communication Interface:
Modbus || Ethernet
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Electrical Connection:
lugs, line || lugs, load
Mounting Support:
lug
Device Application:
distribution
Ambient Air Temperature For Operation:
-2-70 °C
Range:
PowerPact
Pvc Free:
Yes
Control Type:
toggle
Local Signalling:
switched off (OFF) 1 trip indicator green)
Environmental Disclosure:
ENVPEP2206027EN
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Line Rated Current:
15-15 A
Height:
163 mm
Terminal Identifier:
AL150HD
