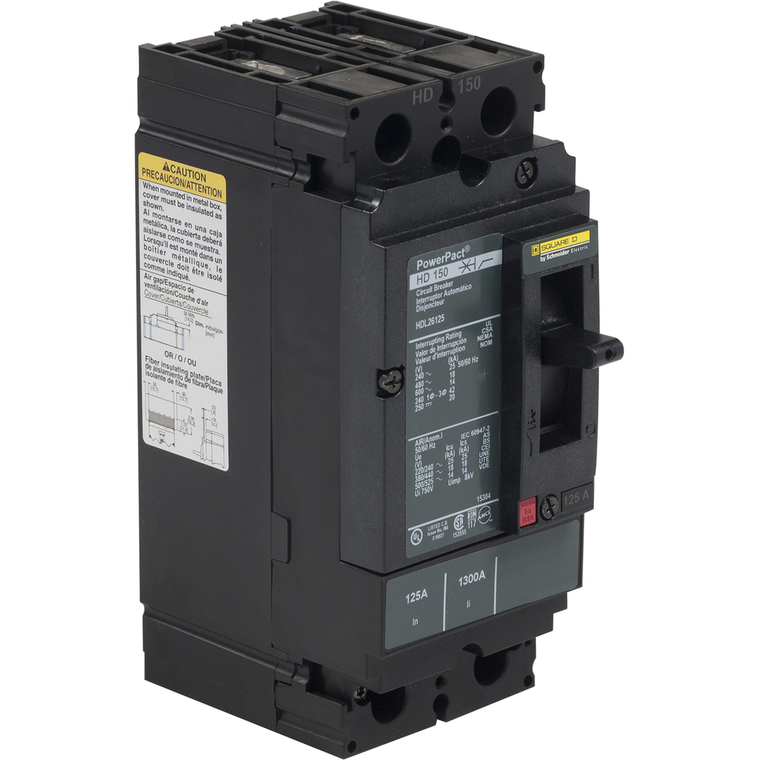

Schneider Electric HGA260202 Molded Case Circuit Breaker 600V 20A
Schneider Electric
Schneider Electric HGL26020 Molded Case Circuit Breaker 600V 20A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 20A, 2 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Mercury Free:
- Yes
- Pvc Free:
- Yes
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Depth:
- 86 mm
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Mounting Mode:
- unit mount lug)
- Device Application:
- distribution
- Circularity Profile:
- ENVEOLI2206027EN
- Height:
- 163 mm
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Range:
- PowerPact
- Mounting Support:
- lug
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Product Name:
- PowerPact H
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Rohs Exemption Information:
- Yes
- Net Weight:
- 2.2 kg
- Network Frequency:
- 50/60 Hz
- Electrical Connection:
- lugs, line || lugs, load
- Control Type:
- toggle
- Ambient Air Temperature For Storage:
- -50-85 °C
- Color:
- Black
- Product Or Component Type:
- circuit breaker
- Ambient Air Temperature For Operation:
- -2-70 °C
- Line Rated Current:
- 20-20 A
- Product Certifications:
- UL || CSA || NOM
- Magnetic Tripping Current:
- 750-750 A
- Terminal Identifier:
- AL150HD
- Sustainable Offer Status:
- Green Premium product
- Protected Poles Description:
- 2t
- Eu Rohs Directive:
- Compliant with Exemptions
- Pollution Degree:
- 3 IEC 60947-1
- Environmental Disclosure:
- ENVPEP2206027EN
- Communication Interface:
- Modbus || Ethernet
- Utilisation Category:
- category A
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Wire Stripping Length:
- 16 mm
- Quantity Per Set:
- 1
- Width:
- 104 mm
- Breaking Capacity Code:
- G
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Trip Unit Technology:
- thermal-magnetic
- Suitability For Isolation:
- yes IEC 60947-2
- Magnetic Hold Current:
- 350 A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Poles Description:
- 2P
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Circuit Breaker Application:
- HACR rated
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Continuous Current Rating:
- 0.8
- Quality Labels:
- CE
- Warranty:
- 18 months
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
