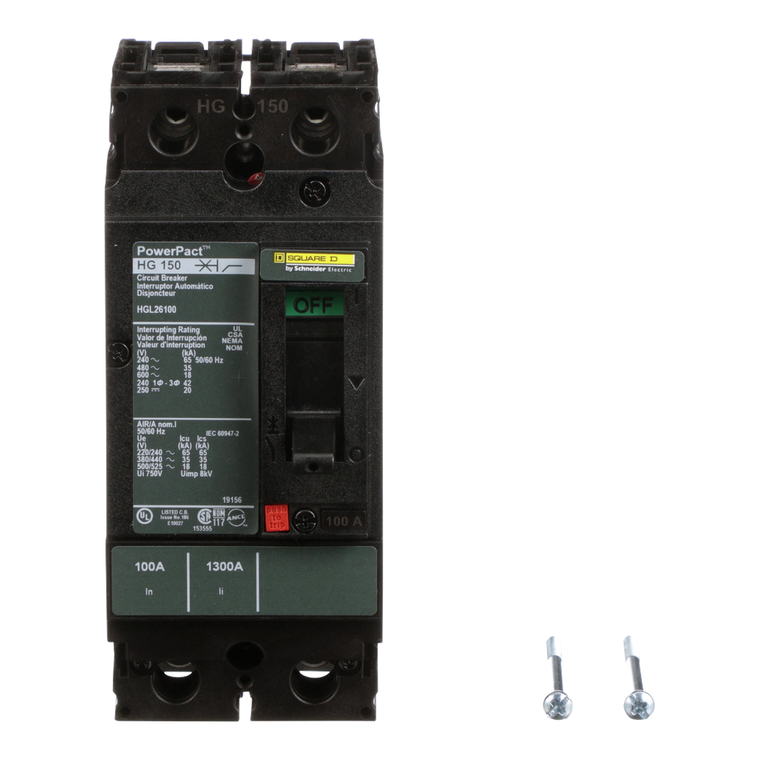

Schneider Electric HGL26100 Molded Case Circuit Breaker 600V 100A

(No reviews yet) Write a Review

Write a Review

Schneider Electric HGL26100 Molded Case Circuit Breaker 600V 100A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HGL26100

UPC:

785901883685

MPN:

Condition:

New

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Communication Interface:

Modbus || Ethernet

Local Signalling:

switched off (OFF) 1 trip indicator green)

Quality Labels:

CE

Terminal Identifier:

AL150HD

Height:

163 mm

Breaking Capacity:

65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489

Warranty:

18 months

Environmental Disclosure:

ENVPEP2206027EN

Mercury Free:

Yes

Product Or Component Type:

circuit breaker

Electrical Connection:

lugs, line || lugs, load

Ambient Air Temperature For Operation:

-2-70 °C

Tightening Torque:

5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)

Mounting Support:

lug

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Device Application:

distribution

Continuous Current Rating:

0.8

Range:

PowerPact

Ip Degree Of Protection:

front cover IP40 IEC 60529

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Control Type:

toggle

Circularity Profile:

ENVEOLI2206027EN

Color:

Black

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Pollution Degree:

3 IEC 60947-1

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Ics] Rated Service Breaking Capacity:

65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Pvc Free:

Yes

Circuit Breaker Application:

HACR rated

Product Name:

PowerPact H

Wire Stripping Length:

16 mm

Magnetic Tripping Current:

1700-1700 A

Breaking Capacity Code:

G

Suitability For Isolation:

yes IEC 60947-2

Product Certifications:

UL || CSA || NOM

Width:

104 mm

Ambient Air Temperature For Storage:

-50-85 °C

Magnetic Hold Current:

900 A

Eu Rohs Directive:

Compliant with Exemptions

Poles Description:

2P

Net Weight:

2.2 kg

Protected Poles Description:

2t

Line Rated Current:

100-100 A

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Trip Unit Technology:

thermal-magnetic

Network Frequency:

50/60 Hz

Sustainable Offer Status:

Green Premium product

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz IEC 60947-3

Depth:

86 mm

Mounting Mode:

unit mount lug)

Rohs Exemption Information:

Yes

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Quantity Per Set:

1

Utilisation Category:

category A

Awg Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Brochure:

View

Catalog:

View

Datasheet:

View
