Schneider Electric HGL36060 Molded Case Circuit Breaker 600V 60A
Schneider Electric
$1,493.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

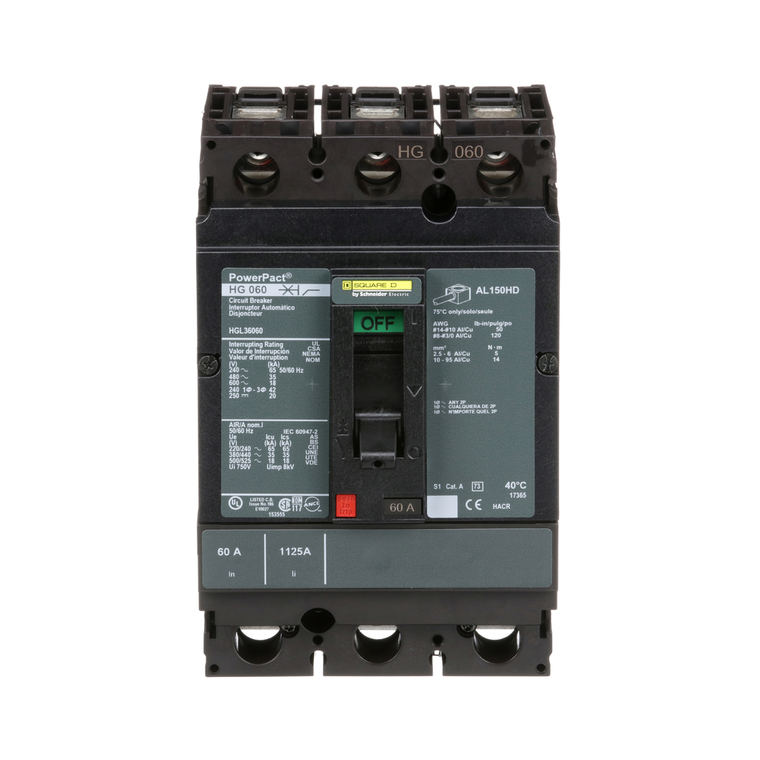

Schneider Electric HGL36060 Molded Case Circuit Breaker 600V 60A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Utilisation Category:
- category A
- Ambient Air Temperature For Operation:
- -2-70 °C
- Eu Rohs Directive:
- Compliant with Exemptions
- Color:
- Black
- Terminal Identifier:
- AL150HD
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Communication Interface:
- Modbus || Ethernet
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Magnetic Hold Current:
- 800 A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ambient Air Temperature For Storage:
- -50-85 °C
- Network Frequency:
- 50/60 Hz
- Circuit Breaker Application:
- HACR rated
- Mercury Free:
- Yes
- Trip Unit Technology:
- thermal-magnetic
- Pvc Free:
- Yes
- Protected Poles Description:
- 3t
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Circularity Profile:
- ENVEOLI2206027EN
- Depth:
- 86 mm
- Product Or Component Type:
- circuit breaker
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Quality Labels:
- CE
- Electrical Connection:
- lugs, line || lugs, load
- Rohs Exemption Information:
- Yes
- Pollution Degree:
- 3 IEC 60947-1
- Width:
- 104 mm
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Wire Stripping Length:
- 16 mm
- Sustainable Offer Status:
- Green Premium product
- Device Application:
- distribution
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Magnetic Tripping Current:
- 1450-1450 A
- Height:
- 163 mm
- Poles Description:
- 3P
- Continuous Current Rating:
- 0.8
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Name:
- PowerPact H
- Mounting Mode:
- unit mount lug)
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Range:
- PowerPact
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Net Weight:
- 2.2 kg
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Environmental Disclosure:
- ENVPEP2206027EN
- Breaking Capacity Code:
- G
- Quantity Per Set:
- 1
- Warranty:
- 18 months
- Product Certifications:
- UL || CSA || NOM
- Line Rated Current:
- 60-60 A
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Suitability For Isolation:
- yes IEC 60947-2
- Control Type:
- toggle
- Mounting Support:
- lug
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
