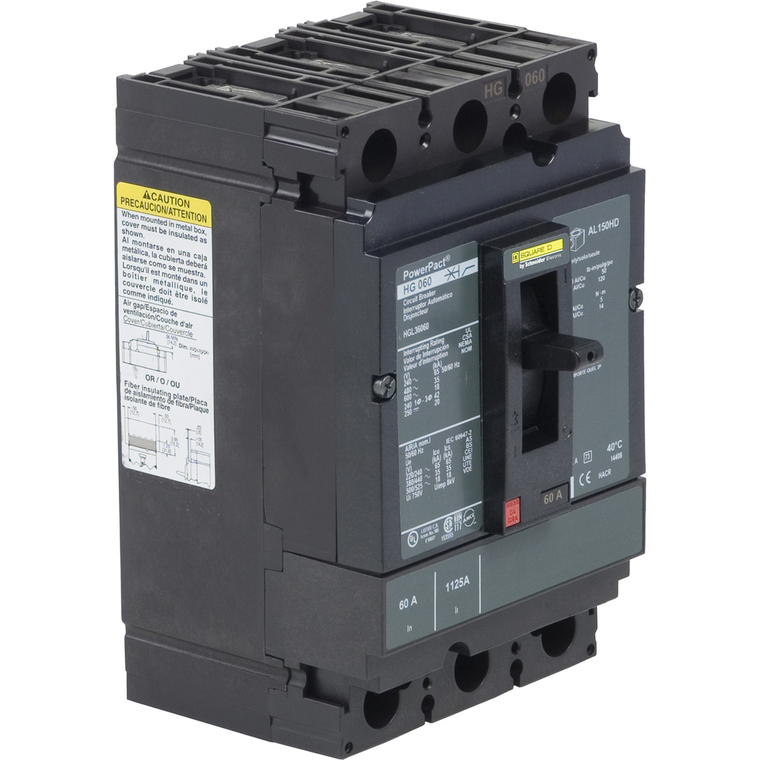

Schneider Electric HGL36060C Molded Case Circuit Breaker 600V 60A

Schneider Electric HGL36060C Molded Case Circuit Breaker 600V 60A

Schneider Electric
SKU:
HGL36060C
|
UPC:
7.85901E+11
Availability:
Factory stock
$1,141.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Line Rated Current:
60-60 A
Height:
163 mm
Breaking Capacity Code:
G
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Circuit Breaker Application:
HACR rated
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Magnetic Hold Current:
800 A
Suitability For Isolation:
yes IEC 60947-2
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Mounting Mode:
unit mount lug)
Rohs Exemption Information:
Yes
Quality Labels:
CE
Range:
PowerPact
Mounting Support:
lug
Wire Stripping Length:
16 mm
Eu Rohs Directive:
Compliant with Exemptions
Color:
Black
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Name:
PowerPact H
Electrical Connection:
lugs, line || lugs, load
Product Or Component Type:
circuit breaker
Protected Poles Description:
3t
Continuous Current Rating:
1
Ambient Air Temperature For Storage:
-50-85 °C
Control Type:
toggle
Utilisation Category:
category A
Quantity Per Set:
1
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Device Application:
distribution
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Mercury Free:
Yes
Ip Degree Of Protection:
front cover IP40 IEC 60529
Pollution Degree:
3 IEC 60947-1
Circularity Profile:
ENVEOLI2206027EN
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Network Frequency:
50/60 Hz
Environmental Disclosure:
ENVPEP2206027EN
Poles Description:
3P
Terminal Identifier:
AL150HD
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Sustainable Offer Status:
Green Premium product
Communication Interface:
Modbus || Ethernet
Trip Unit Technology:
thermal-magnetic
Local Signalling:
switched off (OFF) 1 trip indicator green)
Depth:
86 mm
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Pvc Free:
Yes
Product Certifications:
UL || CSA || NOM
Width:
104 mm
Ambient Air Temperature For Operation:
-2-70 °C
Net Weight:
2.2 kg
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Warranty:
18 months
Magnetic Tripping Current:
1450-1450 A
