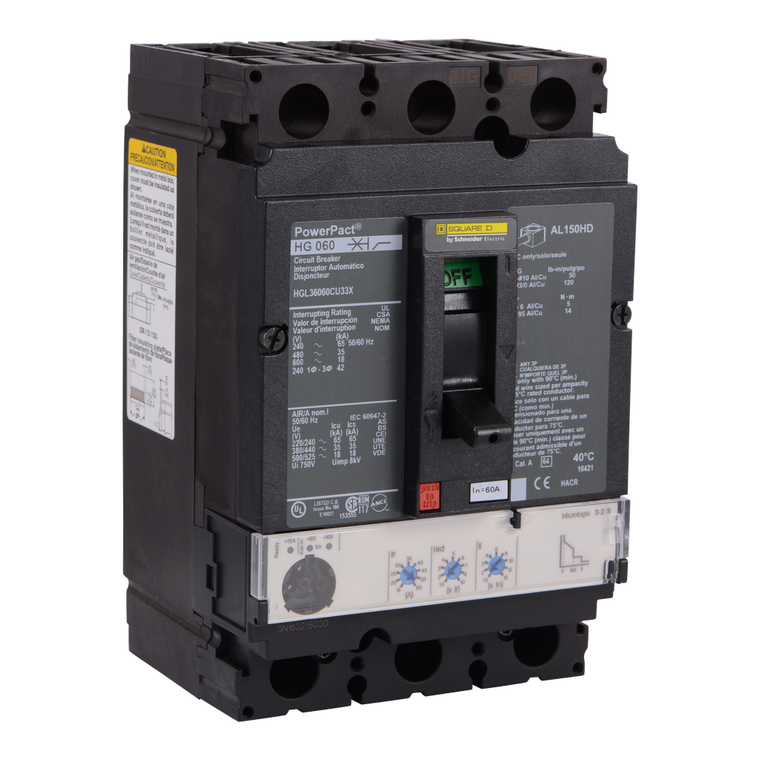

Schneider Electric HGL36060CU33X Molded Case Circuit Breaker 600V 60A
Schneider Electric
$2,113.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric HGL36060CU33X Molded Case Circuit Breaker 600V 60A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Width:
- 104 mm
- Control Type:
- toggle
- Environmental Disclosure:
- ENVPEP2206028EN
- Net Weight:
- 2.2 kg
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.2 S, LSI
- Breaking Capacity Code:
- G
- Rohs Exemption Information:
- Yes
- Mounting Support:
- lug
- Mounting Mode:
- unit mount lug)
- Quality Labels:
- CE
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Ambient Air Temperature For Storage:
- -50-85 °C
- Line Rated Current:
- 60-60 A
- Warranty:
- 18 months
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Trip Unit Name:
- MicroLogic 3.2 S
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Pollution Degree:
- 3 IEC 60947-1
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Wire Stripping Length:
- 16 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Protected Poles Description:
- 3t
- Mercury Free:
- Yes
- Device Application:
- distribution
- Depth:
- 86 mm
- Product Certifications:
- UL || CSA || NOM
- Circuit Breaker Application:
- HACR rated
- Terminal Identifier:
- AL150HD
- Ambient Air Temperature For Operation:
- -2-70 °C
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Eu Rohs Directive:
- Compliant with Exemptions
- Continuous Current Rating:
- 1
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Network Frequency:
- 50/60 Hz
- Pvc Free:
- Yes
- Poles Description:
- 3P
- Product Or Component Type:
- circuit breaker
- Color:
- Black
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Utilisation Category:
- category A
- Product Name:
- PowerPact H
- Electrical Connection:
- lugs, line || lugs, load
- Communication Interface:
- Modbus || Ethernet
- Sustainable Offer Status:
- Green Premium product
- Range:
- PowerPact
- Quantity Per Set:
- 1
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Circularity Profile:
- ENVEOLI2206028EN
- Height:
- 163 mm
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Suitability For Isolation:
- yes IEC 60947-2
