Schneider Electric HGL36080C Molded Case Circuit Breaker 600V 80A
Schneider Electric
$2,042.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

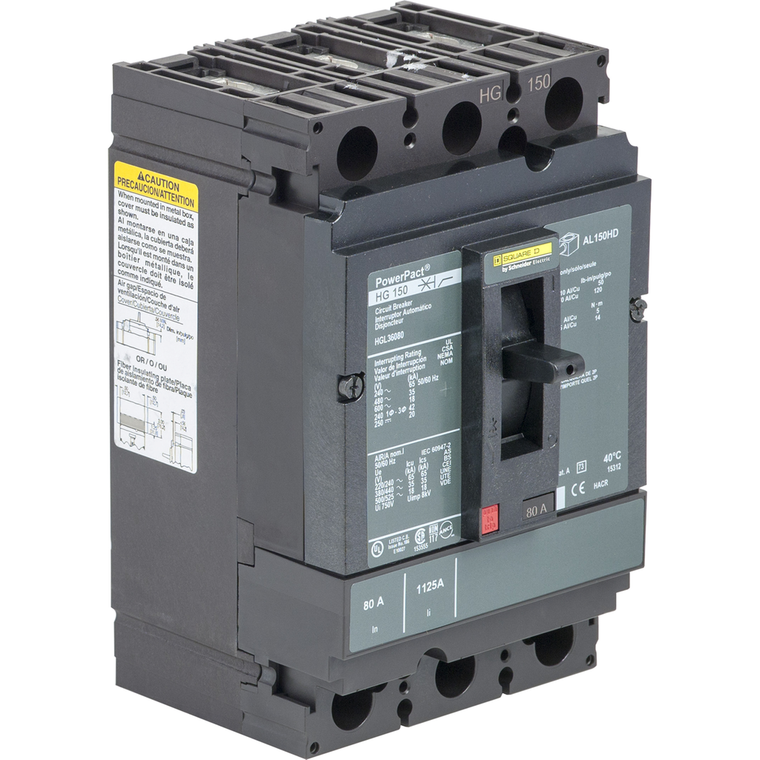

Schneider Electric HGL36080C Molded Case Circuit Breaker 600V 80A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 80A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Utilisation Category:
- category A
- Mounting Support:
- lug
- Communication Interface:
- Modbus || Ethernet
- Wire Stripping Length:
- 16 mm
- Trip Unit Technology:
- thermal-magnetic
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Quality Labels:
- CE
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Circuit Breaker Application:
- HACR rated
- Pollution Degree:
- 3 IEC 60947-1
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Product Certifications:
- UL || CSA || NOM
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Color:
- Black
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Ambient Air Temperature For Operation:
- -2-70 °C
- Range:
- PowerPact
- Depth:
- 86 mm
- Magnetic Tripping Current:
- 1450-1450 A
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Quantity Per Set:
- 1
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Mercury Free:
- Yes
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Protected Poles Description:
- 3t
- Mounting Mode:
- unit mount lug)
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Breaking Capacity Code:
- G
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Eu Rohs Directive:
- Compliant with Exemptions
- Width:
- 104 mm
- Control Type:
- toggle
- Device Application:
- distribution
- Electrical Connection:
- lugs, line || lugs, load
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Terminal Identifier:
- AL150HD
- Network Frequency:
- 50/60 Hz
- Ambient Air Temperature For Storage:
- -50-85 °C
- Continuous Current Rating:
- 1
- Warranty:
- 18 months
- Product Name:
- PowerPact H
- Net Weight:
- 2.2 kg
- Product Or Component Type:
- circuit breaker
- Line Rated Current:
- 80-80 A
- Magnetic Hold Current:
- 800 A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure:
- ENVPEP2206027EN
- Suitability For Isolation:
- yes IEC 60947-2
- Height:
- 163 mm
- Circularity Profile:
- ENVEOLI2206027EN
- Pvc Free:
- Yes
- Rohs Exemption Information:
- Yes
- Poles Description:
- 3P
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
