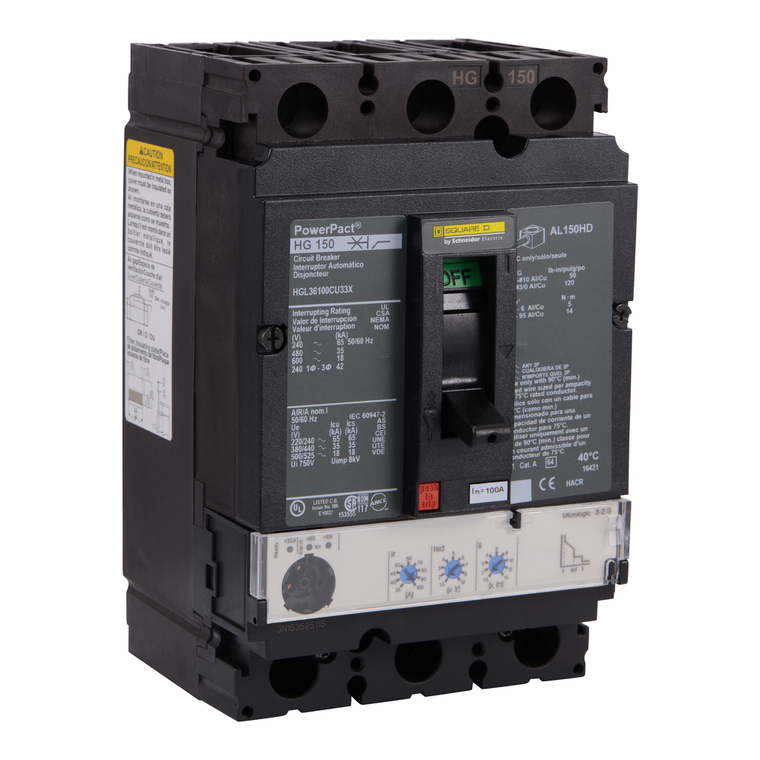

Schneider Electric HGL36100CU33X Molded Case Circuit Breaker 600V 100A

Schneider Electric HGL36100CU33X Molded Case Circuit Breaker 600V 100A

Schneider Electric
SKU:
HGL36100CU33X
|
UPC:
7.85902E+11
Availability:
Contact us to confirm availability and lead times.
$2,356.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Suitability For Isolation:
yes IEC 60947-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Warranty:
18 months
Mounting Mode:
unit mount lug)
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Quality Labels:
CE
Quantity Per Set:
1
Utilisation Category:
category A
Width:
104 mm
Network Frequency:
50/60 Hz
Range:
PowerPact
Ambient Air Temperature For Operation:
-2-70 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Height:
163 mm
Breaking Capacity Code:
G
Continuous Current Rating:
1
Circuit Breaker Application:
HACR rated
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Mounting Support:
lug
Line Rated Current:
100-100 A
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Communication Interface:
Modbus || Ethernet
Net Weight:
2.2 kg
Depth:
86 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Trip Unit Technology:
electronic, standard, MicroLogic 3.2 S, LSI
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Ambient Air Temperature For Storage:
-50-85 °C
Pvc Free:
Yes
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Eu Rohs Directive:
Compliant with Exemptions
Color:
Black
Environmental Disclosure:
ENVPEP2206028EN
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Trip Unit Name:
MicroLogic 3.2 S
Terminal Identifier:
AL150HD
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Device Application:
distribution
Product Name:
PowerPact H
Product Or Component Type:
circuit breaker
Ip Degree Of Protection:
front cover IP40 IEC 60529
Wire Stripping Length:
16 mm
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Control Type:
toggle
Mercury Free:
Yes
Protected Poles Description:
3t
Product Certifications:
UL || CSA || NOM
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Pollution Degree:
3 IEC 60947-1
Circularity Profile:
ENVEOLI2206028EN
Poles Description:
3P
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Electrical Connection:
lugs, line || lugs, load
