Schneider Electric HGL36100T Molded Case Circuit Breaker 600V 100A
Schneider Electric
$2,551.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

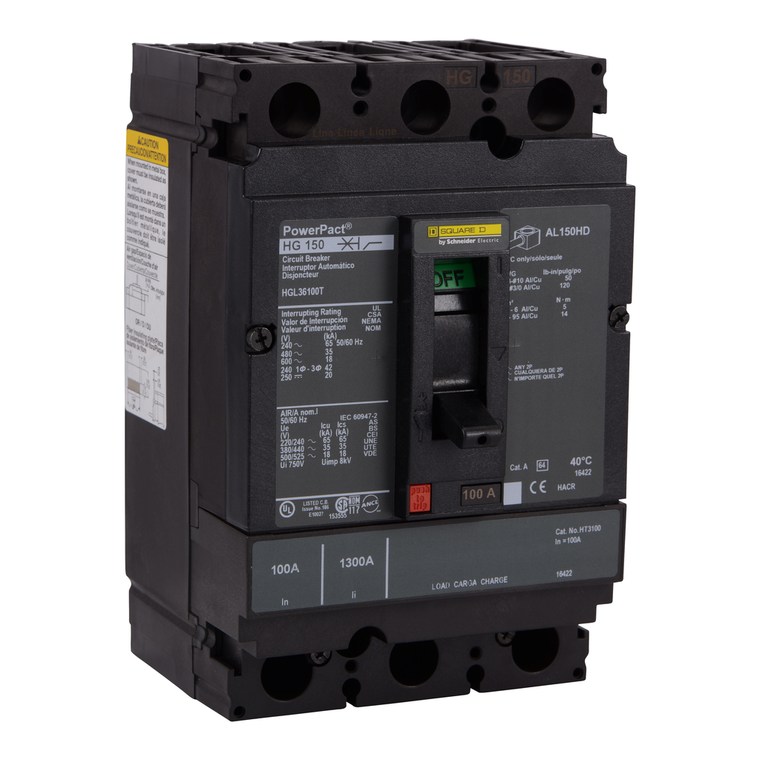

Schneider Electric HGL36100T Molded Case Circuit Breaker 600V 100A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit allows field-interchangeable trip units. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Net Weight:
- 2.2 kg
- Wire Stripping Length:
- 16 mm
- Line Rated Current:
- 100-100 A
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Breaking Capacity Code:
- G
- Quality Labels:
- CE
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Range:
- PowerPact
- Mounting Mode:
- unit mount lug)
- Continuous Current Rating:
- 0.8
- Utilisation Category:
- category A
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Installed Device:
- trip unit field installable
- Eu Rohs Directive:
- Compliant
- Pvc Free:
- Yes
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Control Type:
- toggle
- Magnetic Tripping Current:
- 1700-1700 A
- Protected Poles Description:
- 3t
- Circularity Profile:
- ENVEOLI1311006EN
- Quantity Per Set:
- 1
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Mercury Free:
- Yes
- Product Certifications:
- UL || CSA || NOM
- Environmental Disclosure:
- ENVPEP1311006EN
- Ambient Air Temperature For Storage:
- -50-85 °C
- Pollution Degree:
- 3 IEC 60947-1
- Terminal Identifier:
- AL150HD
- Sustainable Offer Status:
- Green Premium product
- Poles Description:
- 3P
- Product Or Component Type:
- circuit breaker
- Depth:
- 86 mm
- Trip Unit Technology:
- thermal-magnetic
- Color:
- Black
- Communication Interface:
- Modbus || Ethernet
- Width:
- 104 mm
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Magnetic Hold Current:
- 900 A
- Mounting Support:
- lug
- Electrical Connection:
- lugs, line || lugs, load
- Ambient Air Temperature For Operation:
- -2-70 °C
- Suitability For Isolation:
- yes IEC 60947-2
- Product Name:
- PowerPact H
- Device Application:
- distribution
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Height:
- 163 mm
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Network Frequency:
- 50/60 Hz
- Warranty:
- 18 months
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Circuit Breaker Application:
- HACR rated
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Rohs Exemption Information:
- Yes
