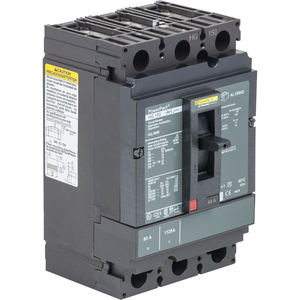

Schneider Electric HGL36150CU31X Molded Case Circuit Breaker 600V 150A

Schneider Electric HGL36150CU31X Molded Case Circuit Breaker 600V 150A

Schneider Electric
SKU:
HGL36150CU31X
|
UPC:
785901463658
Availability:
Factory stock
$4,095.85
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Terminal Identifier:
AL150HD
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Width:
104 mm
Height:
163 mm
Trip Unit Technology:
electronic, standard, MicroLogic 3.2, LI
Mounting Support:
lug
Trip Unit Name:
MicroLogic 3.2
Mounting Mode:
unit mount lug)
Poles Description:
3P
Product Name:
PowerPact H
Pvc Free:
Yes
Color:
Black
Quality Labels:
CE
Network Frequency:
50/60 Hz
Warranty:
18 months
Utilisation Category:
category A
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Breaking Capacity Code:
G
Circularity Profile:
ENVEOLI2206028EN
Net Weight:
2.2 kg
Rohs Exemption Information:
Yes
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Continuous Current Rating:
1
Product Certifications:
UL || CSA || NOM
Ip Degree Of Protection:
front cover IP40 IEC 60529
Eu Rohs Directive:
Compliant with Exemptions
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Circuit Breaker Application:
HACR rated
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Control Type:
toggle
Ambient Air Temperature For Operation:
-2-70 °C
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Device Application:
distribution
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Product Or Component Type:
circuit breaker
Communication Interface:
Modbus || Ethernet
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Sustainable Offer Status:
Green Premium product
Electrical Connection:
lugs, line || lugs, load
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Depth:
86 mm
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Line Rated Current:
150-150 A
Range:
PowerPact
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Wire Stripping Length:
16 mm
Mercury Free:
Yes
Environmental Disclosure:
ENVPEP2206028EN
Suitability For Isolation:
yes IEC 60947-2
Pollution Degree:
3 IEC 60947-1
Protected Poles Description:
3t
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Ambient Air Temperature For Storage:
-50-85 °C
Quantity Per Set:
1
Brochure:
View
Catalog:
View
Datasheet:
View
