Schneider Electric HDA260401 Molded Case Circuit Breaker 600V 40A
Schneider Electric

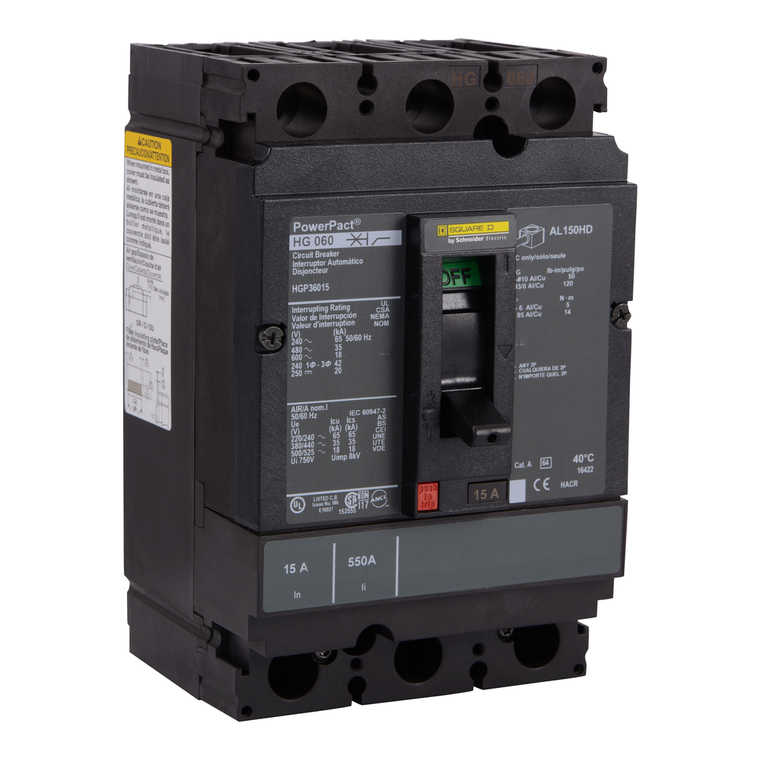

Schneider Electric HGP36040 Molded Case Circuit Breaker 600V 40A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has terminal nuts on the line side and lugs on the load side. This PowerPacT H, 40A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Mounting Support:
- lug
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Network Frequency:
- 50/60 Hz
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Mercury Free:
- Yes
- Continuous Current Rating:
- 0.8
- Rohs Exemption Information:
- Yes
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Trip Unit Technology:
- thermal-magnetic
- Color:
- Black
- Poles Description:
- 3P
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Control Type:
- toggle
- Ambient Air Temperature For Operation:
- -2-70 °C
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Breaking Capacity Code:
- G
- Sustainable Offer Status:
- Green Premium product
- Product Certifications:
- UL || CSA || NOM
- Line Rated Current:
- 40-40 A
- Magnetic Tripping Current:
- 850-850 A
- Product Or Component Type:
- circuit breaker
- Communication Interface:
- Modbus || Ethernet
- Environmental Disclosure:
- ENVPEP1311006EN
- Product Name:
- PowerPact H
- Magnetic Hold Current:
- 400 A
- Height:
- 163 mm
- Utilisation Category:
- category A
- Mounting Mode:
- unit mount lug)
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Suitability For Isolation:
- yes IEC 60947-2
- Wire Stripping Length:
- 16 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Ambient Air Temperature For Storage:
- -50-85 °C
- Terminal Identifier:
- AL150HD
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Circularity Profile:
- ENVEOLI1311006EN
- Warranty:
- 18 months
- Device Application:
- distribution
- Net Weight:
- 2.2 kg
- Circuit Breaker Application:
- HACR rated
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Electrical Connection:
- terminal nut, line || lugs, load
- Quality Labels:
- CE
- Depth:
- 86 mm
- Width:
- 104 mm
- Pvc Free:
- Yes
- Eu Rohs Directive:
- Compliant
- Protected Poles Description:
- 3t
- Quantity Per Set:
- 1
- Pollution Degree:
- 3 IEC 60947-1
- Range:
- PowerPact
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
