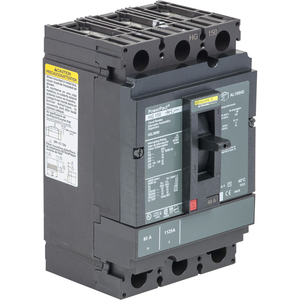

Schneider Electric HGP36125 Molded Case Circuit Breaker 600V 125A
Schneider Electric
$3,599.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has terminal nuts on the line side and lugs on the load side. This PowerPacT H, 125A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Range:
- PowerPact
- Device Application:
- distribution
- Width:
- 104 mm
- Magnetic Hold Current:
- 900 A
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Product Certifications:
- UL || CSA || NOM
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Rohs Exemption Information:
- Yes
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Network Frequency:
- 50/60 Hz
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Circularity Profile:
- ENVEOLI2206027EN
- Circuit Breaker Application:
- HACR rated
- Breaking Capacity Code:
- G
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Pvc Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Suitability For Isolation:
- yes IEC 60947-2
- Utilisation Category:
- category A
- Electrical Connection:
- terminal nut, line || lugs, load
- Poles Description:
- 3P
- Line Rated Current:
- 125-125 A
- Communication Interface:
- Modbus || Ethernet
- Ambient Air Temperature For Storage:
- -50-85 °C
- Quality Labels:
- CE
- Protected Poles Description:
- 3t
- Color:
- Black
- Terminal Identifier:
- AL150HD
- Product Name:
- PowerPact H
- Product Or Component Type:
- circuit breaker
- Height:
- 163 mm
- Mercury Free:
- Yes
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Trip Unit Technology:
- thermal-magnetic
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Depth:
- 86 mm
- Magnetic Tripping Current:
- 1700-1700 A
- Mounting Mode:
- unit mount lug)
- Ambient Air Temperature For Operation:
- -2-70 °C
- Environmental Disclosure:
- ENVPEP2206027EN
- Continuous Current Rating:
- 0.8
- Control Type:
- toggle
- Sustainable Offer Status:
- Green Premium product
- Net Weight:
- 2.2 kg
- Mounting Support:
- lug
- Wire Stripping Length:
- 16 mm
- Quantity Per Set:
- 1
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Pollution Degree:
- 3 IEC 60947-1
- Eu Rohs Directive:
- Compliant with Exemptions
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
